SFM-105-02-SM-D-LC footprint, schematic symbol and 3D model by SAMTEC

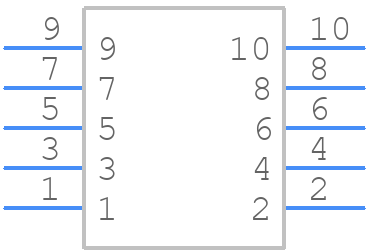

Symbol

click to zoom

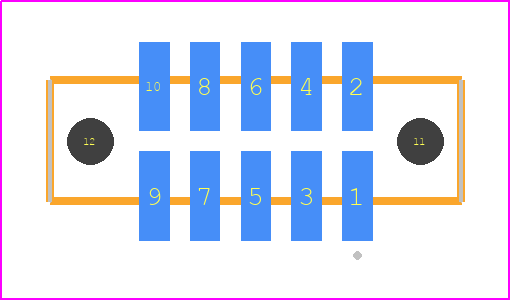

PCB Footprints

SFM-105-02-SM-D-LC - SAMTEC PCB footprint - Other - Other - SFM-105-YY-ZZZ-D-LC

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SFM-105-02-SM-D-LC
Part Number SFM-105-02-SM-D-LC
Manufacturer SAMTEC
Pin Count 10
Part Category Connector
Package Category Other
Footprint Name Other - SFM-105-YY-ZZZ-D-LC
Released Date Jun 28, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

SFM-105-02-SM-D-LC Details

Manufacturer Part Number:
SFM-105-02-SM-D-LC
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Vietnam
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Samtec Inc
YTEOL:
12
Additional Feature:
TIGER EYE CONTACT
Board Mounting Option:
SPLIT BOARD LOCK
Body Breadth:
0.145 inch
Body Depth:
0.185 inch
Body Length:
0.405 inch
Body/Shell Style:
SOCKET
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
GOLD (30)
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
FEMALE
Contact Pattern:
RECTANGULAR
Contact Style:
SQ PIN-SKT
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Color:
BLACK
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Contact Pitch:
0.05 inch
Mating Contact Row Spacing:
0.05 inch
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Rows Loaded:
2
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
2.7178 mm
Plating Thickness:
30u inch
Rated Current (Signal):
3.2 A
Terminal Pitch:
1.27 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
10

SFM-105-02-SM-D-LC Frequently Asked Questions (FAQs)

The recommended mating sequence for SFM-105-02-SM-D-LC is to mate the contacts first, followed by the housing. This ensures proper alignment and prevents damage to the contacts.
Yes, the SFM-105-02-SM-D-LC is designed to withstand high-vibration environments. Samtec's SFM series connectors are tested to meet the requirements of IEC 61373, which includes vibration testing.
The maximum operating temperature for SFM-105-02-SM-D-LC is 125°C. However, it's essential to note that the temperature rating may vary depending on the specific application and environment.
Yes, the SFM-105-02-SM-D-LC is compatible with lead-free soldering processes. Samtec's SFM series connectors are designed to meet the requirements of RoHS and WEEE directives.
The typical lead time for SFM-105-02-SM-D-LC may vary depending on the quantity and availability. However, Samtec typically quotes a lead time of 6-8 weeks for standard products. It's recommended to check with authorized distributors or Samtec's customer service for the most up-to-date lead time information.
