SFM-110-02-L-D-DS footprint, schematic symbol and 3D model by SAMTEC

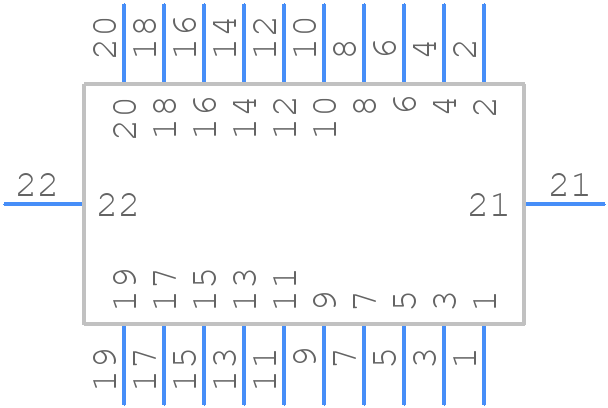

Symbol

click to zoom

PCB Footprints

SFM-110-02-L-D-DS - SAMTEC PCB footprint - Other - Other - SFM-110-02-ZZZ-D-DS

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SFM-110-02-L-D-DS
Part Number SFM-110-02-L-D-DS
Manufacturer SAMTEC
Pin Count 22
Part Category Connector
Package Category Other
Footprint Name Other - SFM-110-02-ZZZ-D-DS
Released Date Jun 28, 2020
Last Modified Date Sep 9, 2025 9:48 AM UTC
Pinout / Pin List Click Here (Member Only)

SFM-110-02-L-D-DS Details

Manufacturer Part Number:
SFM-110-02-L-D-DS
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
5 Weeks, 1 Day
Manufacturer:
Samtec Inc
YTEOL:
12
Additional Feature:
POLARIZED
Body/Shell Style:
SOCKET
Connector Type:
BOARD CONNECTOR
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
FEMALE
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e3
MIL Conformance:
NO
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
2
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
Terminal Pitch:
1.27 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
20
UL Flammability Code:
94V-0

SFM-110-02-L-D-DS Frequently Asked Questions (FAQs)

The recommended torque is 0.5-1.5 in-lbs (0.056-0.169 Nm) for the screw locks on the SFM-110-02-L-D-DS.
Yes, the SFM-110-02-L-D-DS is designed to withstand high-vibration environments. However, it's recommended to consult with Samtec's application engineers to ensure the connector meets the specific vibration requirements of your application.
The SFM-110-02-L-D-DS has an operating temperature range of -55°C to +125°C. However, it's recommended to derate the operating temperature based on the specific application and environmental conditions.
The SFM-110-02-L-D-DS is designed to meet the requirements of IPC-J-STD-001, which includes exposure to humidity and chemicals. However, it's recommended to consult with Samtec's application engineers to ensure the connector meets the specific environmental requirements of your application.
The recommended mating cycle for the SFM-110-02-L-D-DS is 500 cycles. However, this may vary depending on the specific application and usage.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

SFM-110-02-L-D-DS Overview

Use the download button to access the SFM-110-02-L-D-DS schematic symbol and PCB footprint.
