SFM-140-02-L-D-DS footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

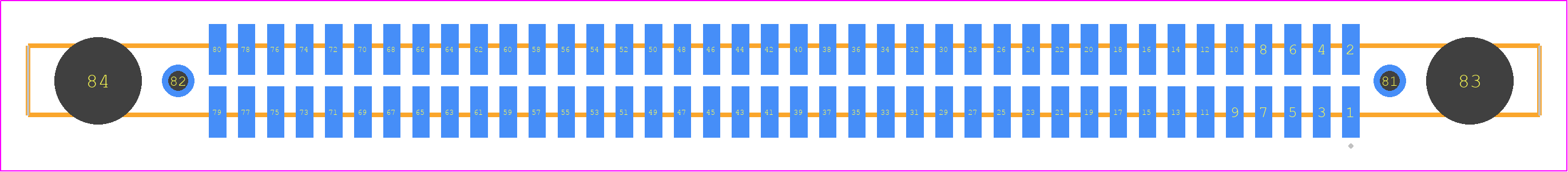

SFM-140-02-L-D-DS - SAMTEC PCB footprint - Other - Other - SFM-140-02-ZZZ-D-DS

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SFM-140-02-L-D-DS
Part Number SFM-140-02-L-D-DS
Manufacturer SAMTEC
Pin Count 82
Part Category Connector
Package Category Other
Footprint Name Other - SFM-140-02-ZZZ-D-DS
Released Date Jun 28, 2020
Last Modified Date Sep 9, 2025 9:48 AM UTC
Pinout / Pin List Click Here (Member Only)

SFM-140-02-L-D-DS Details

Manufacturer Part Number:
SFM-140-02-L-D-DS
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Malaysia, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Samtec Inc
YTEOL:
9.4
Additional Feature:
TIGER EYE SYSTEM, E.L.P.
Body Breadth:
0.145 inch
Body Depth:
0.185 inch
Body Length:
2.6 inch
Body/Shell Style:
SOCKET
Connector Type:
BOARD CONNECTOR
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
FEMALE
Contact Pattern:
RECTANGULAR
Contact Style:
SQ PIN-SKT
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Color:
BLACK
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Contact Pitch:
0.05 inch
Mating Contact Row Spacing:
0.05 inch
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Rows Loaded:
2
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
2.7178 mm
Rated Current (Signal):
3.2 A
Terminal Pitch:
1.27 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
80

SFM-140-02-L-D-DS Frequently Asked Questions (FAQs)

The recommended mating sequence for SFM-140-02-L-D-DS is to mate the contacts first, followed by the housing. This ensures proper alignment and prevents damage to the contacts.
Yes, the SFM-140-02-L-D-DS is designed to withstand high-vibration environments. However, it's essential to follow proper mounting and screw torque procedures to ensure the connector remains secure.
The SFM-140-02-L-D-DS has an operating temperature range of -55°C to +125°C. However, it's essential to note that the temperature rating may vary depending on the specific application and environment.
The SFM-140-02-L-D-DS has a specific mating height of 2mm. While it's possible to use it with a different mating height, it's not recommended as it may affect the connector's performance and reliability.
The current rating for each contact in the SFM-140-02-L-D-DS is 1.4A. However, it's essential to consider the overall current rating of the connector, which is 14A per row, and ensure it meets the requirements of your specific application.
