SFM-150-02-L-D-LC footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

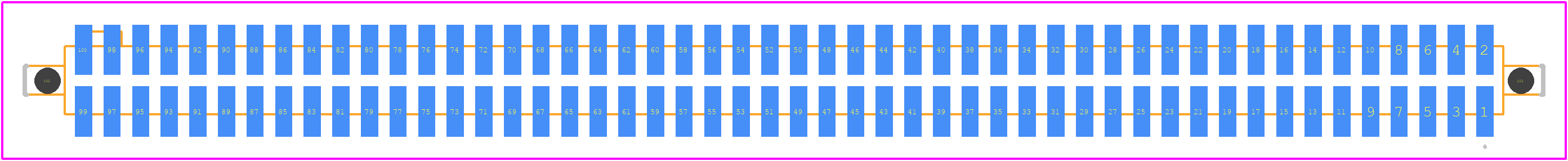

SFM-150-02-L-D-LC - SAMTEC PCB footprint - Other - Other - SFM-150-02-L-D-LC-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SFM-150-02-L-D-LC
Part Number SFM-150-02-L-D-LC
Manufacturer SAMTEC
Pin Count 100
Part Category Connector
Package Category Other
Footprint Name Other - SFM-150-02-L-D-LC-2
Released Date Jun 28, 2020
Last Modified Date Aug 2, 2024 10:24 AM UTC
Pinout / Pin List Click Here (Member Only)

SFM-150-02-L-D-LC Details

Manufacturer Part Number:
SFM-150-02-L-D-LC
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
Country Of Origin:
USA, Vietnam
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Samtec Inc
YTEOL:
9.4
Additional Feature:
TIGER EYE CONTACT
Board Mounting Option:
SPLIT BOARD LOCK
Body Breadth:
0.145 inch
Body Depth:
0.185 inch
Body Length:
2.655 inch
Body/Shell Style:
SOCKET
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
TIN OVER NICKEL
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
FEMALE
Contact Material:
NOT SPECIFIED
Contact Pattern:
RECTANGULAR
Contact Resistance:
15 mΩ
Contact Style:
SQ PIN-SKT
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insertion Force-Max:
.695 N
Insulator Color:
BLACK
Insulator Material:
LIQUID CRYSTAL POLYMER
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Contact Pitch:
0.05 inch
Mating Contact Row Spacing:
0.05 inch
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Rows Loaded:
2
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
2.7432 mm
Plating Thickness:
10u inch
Polarization Key:
POLARIZED HOUSING
Reference Standard:
UL
Terminal Pitch:
1.27 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
100
Withdrawl Force-Min:
.556 N

SFM-150-02-L-D-LC Frequently Asked Questions (FAQs)

The recommended mating sequence for SFM-150-02-L-D-LC is to mate the contacts first, followed by the latches. This ensures proper alignment and prevents damage to the connector.
Yes, the SFM-150-02-L-D-LC is designed to withstand high-vibration environments. The latches provide a secure connection, and the connector's design helps to reduce the risk of vibration-induced failure.
The maximum operating temperature for SFM-150-02-L-D-LC is 125°C (257°F). However, it's recommended to derate the current carrying capacity at higher temperatures to ensure reliable operation.
The SFM-150-02-L-D-LC has a sealed design that provides some level of protection against moisture and chemicals. However, it's not designed for immersion or exposure to harsh chemicals. If you need a connector for use in extreme environments, consider using a connector with a higher IP rating or specialized coatings.
The SFM-150-02-L-D-LC is designed for a specific mating height and stack height. Using it with a different mating height or stack height may affect the connector's performance and reliability. Consult with Samtec Inc or a qualified engineer to determine the feasibility of using this connector with a different mating height or stack height.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

SFM-150-02-L-D-LC Overview

Use the download button to access the SFM-150-02-L-D-LC schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like SFM-1, or try a keyword search, such as Headers and Edge Type Connectors
