SFM-150-L3-S-D-A footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

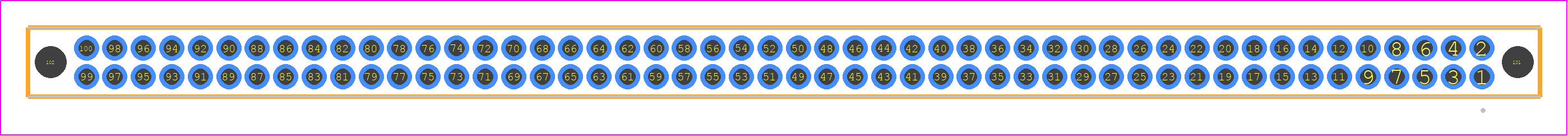

SFM-150-L3-S-D-A - SAMTEC PCB footprint - Other - Other - SFM-150-YY-XX-D-A

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SFM-150-L3-S-D-A
Part Number SFM-150-L3-S-D-A
Manufacturer SAMTEC
Pin Count 100
Part Category Connector
Package Category Other
Footprint Name Other - SFM-150-YY-XX-D-A
Released Date Jun 17, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

SFM-150-L3-S-D-A Details

Manufacturer Part Number:
SFM-150-L3-S-D-A
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Malaysia, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
2 Weeks, 6 Days
Manufacturer:
Samtec Inc
YTEOL:
9.15
Additional Feature:
TIGER EYE CONTACT
Board Mounting Option:
PEG
Body Breadth:
0.145 inch
Body Depth:
0.18 inch
Body Length:
2.575 inch
Body/Shell Style:
SOCKET
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
GOLD (30)
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
FEMALE
Contact Material:
PHOSPHOR BRONZE
Contact Pattern:
RECTANGULAR
Contact Style:
SQ PIN-SKT
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Color:
BLACK
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Contact Pitch:
0.05 inch
Mating Contact Row Spacing:
0.05 inch
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Rows Loaded:
2
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
1.27 mm
Plating Thickness:
30u inch
Rated Current (Signal):
3.2 A
Terminal Pitch:
1.27 mm
Termination Type:
SOLDER
Total Number of Contacts:
100

SFM-150-L3-S-D-A Frequently Asked Questions (FAQs)

The recommended torque for the screw-down mechanism is 1.5-2.5 in-lbs (0.17-0.28 Nm) to ensure proper mating and prevent damage to the connector.
Yes, the SFM-150-L3-S-D-A is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, which ensures reliable performance in applications with intense vibration.
The SFM-150-L3-S-D-A is rated for operating temperatures ranging from -55°C to 125°C and can withstand humidity up to 95% RH. However, it's essential to consult the datasheet and Samtec's application notes for specific guidance on using this connector in harsh environments.
The SFM-150-L3-S-D-A has a mating cycle life of 500 cycles minimum, making it suitable for applications that require frequent mating and unmating.
While the SFM-150-L3-S-D-A is optimized for 1.57 mm PCB thickness, it can be used with PCBs of other thicknesses. However, Samtec recommends consulting their application notes and performing thorough testing to ensure reliable performance.
