SFMC-115-L1-SM-D - SAMTEC

Description: 30 Position, .050" Tiger Eye™ High-Reliability Flexible Pin Count Socket Strip

Download SFMC-115-L1-SM-D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SFMC-115-L1-SM-D - SAMTEC - PCB symbol
click to zoom

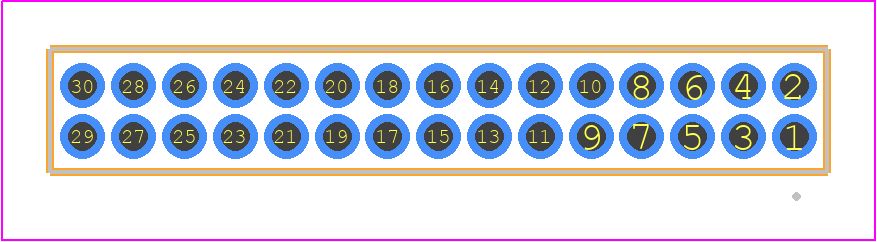

PCB Footprints
SFMC-115-L1-SM-D - SAMTEC PCB footprint - Other - Other - SFMC-115-XX-YY-D
click to zoom
3D Models
SFMC-115-L1-SM-D - SAMTEC - 3D model - Other - SFMC-115-XX-YY-D
click to zoom

SFMC-115-L1-SM-D Details

  • Manufacturer Part Number:

    SFMC-115-L1-SM-D

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, Vietnam

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    2 Weeks

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    9.15

  • Additional Feature:

    LOW INSERTION FORCE

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    30

SFMC-115-L1-SM-D Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks is 0.5-1.5 N·m (4-12 in·lb) according to Samtec's application notes.
  • Yes, the SFMC-115-L1-SM-D is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, which means it can withstand vibrations up to 15 g (147 m/s²) in the frequency range of 10-2000 Hz.
  • The maximum operating temperature range for the SFMC-115-L1-SM-D is -40°C to +125°C, according to the datasheet. However, it's recommended to derate the operating temperature range based on the specific application and environmental conditions.
  • Yes, the SFMC-115-L1-SM-D is compatible with lead-free soldering processes. Samtec recommends using a peak reflow temperature of 260°C (500°F) for lead-free soldering.
  • The mating cycle life of the SFMC-115-L1-SM-D is 500 cycles minimum, according to Samtec's reliability testing. However, this may vary depending on the specific application and environmental conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SFMC-115-L1-SM-D Overview

Use the download button to access the SFMC-115-L1-SM-D schematic symbol, PCB footprint, and 3D model.
