SFMC-144-02-S-D footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

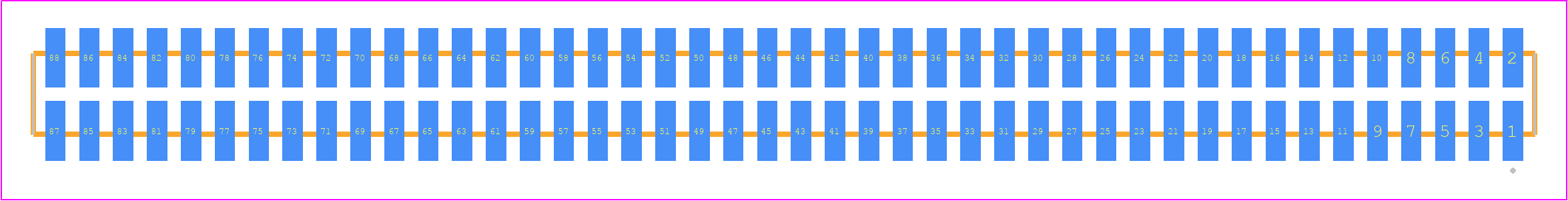

SFMC-144-02-S-D - SAMTEC PCB footprint - Other - Other - SFMC-144-SS-YY-D

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SFMC-144-02-S-D
Part Number SFMC-144-02-S-D
Manufacturer SAMTEC
Pin Count 88
Part Category Connector
Package Category Other
Footprint Name Other - SFMC-144-SS-YY-D
Released Date Jun 22, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

SFMC-144-02-S-D Details

Manufacturer Part Number:
SFMC-144-02-S-D
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
Country Of Origin:
Costa Rica, Malaysia
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Samtec Inc
YTEOL:
9.4
Additional Feature:
TIGER EYE CONTACT, HIGH RELIABILITY
Body/Shell Style:
SOCKET
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
GOLD (30) OVER NICKEL
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
FEMALE
Contact Material:
BERYLLIUM COPPER
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
2
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
Terminal Pitch:
1.27 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
88

SFMC-144-02-S-D Frequently Asked Questions (FAQs)

The recommended mating sequence for SFMC-144-02-S-D is to mate the guides first, followed by the contacts. This ensures proper alignment and prevents damage to the connector.
Yes, the SFMC-144-02-S-D is designed to withstand high-vibration environments. It has a ruggedized design and is suitable for use in applications with high shock and vibration.
The maximum operating temperature for SFMC-144-02-S-D is 125°C. However, it's recommended to derate the current carrying capacity at higher temperatures to ensure reliable operation.
No, the SFMC-144-02-S-D is designed for use with PCBs with a maximum thickness of 1.57mm. Using a thicker PCB may cause the connector to not seat properly or may lead to reliability issues.
The recommended torque for the screws on SFMC-144-02-S-D is 0.5-1.5 N·m (4-12 in·lb). Over-torquing may damage the connector or the PCB.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

SFMC-144-02-S-D Overview

Use the download button to access the SFMC-144-02-S-D schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like SFMC-, or try a keyword search, such as Headers and Edge Type Connectors
