SFML-105-03-S-D-LC - SAMTEC

Description: 10 Position Receptacle Connector 0.050" (1.27mm) Through Hole Gold 250VAC , 3.2A , -55°C ~ 125°C

Download SFML-105-03-S-D-LC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

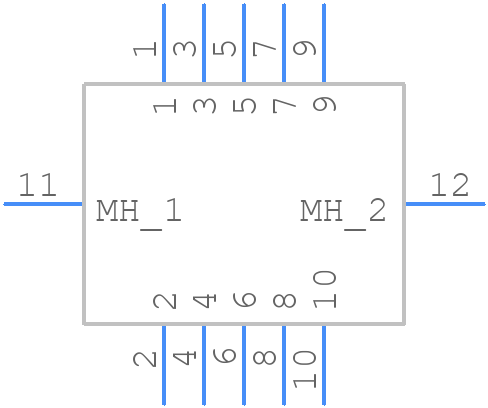

Symbol
SFML-105-03-S-D-LC - SAMTEC - PCB symbol
click to zoom
PCB Footprints
SFML-105-03-S-D-LC - SAMTEC PCB footprint - Other - Other - SFML-105-03-S-D-LC-1
click to zoom
3D Models
SFML-105-03-S-D-LC - SAMTEC - 3D model - Other - SFML-105-03-S-D-LC-1
click to zoom

SFML-105-03-S-D-LC Details

  • Manufacturer Part Number:

    SFML-105-03-S-D-LC

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, Vietnam

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    2 Weeks, 6 Days

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    9.15

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    GOLD (30)

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Material:

    BERYLLIUM COPPER

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Rated Current (Signal):

    3.2 A

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    10

  • UL Flammability Code:

    94V-0

SFML-105-03-S-D-LC Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks is 0.5-1.5 in-lbs (0.056-0.169 Nm) to ensure secure connection without damaging the connector.
  • Yes, SFML-105-03-S-D-LC is designed to withstand high-vibration environments. The screw locks and rugged construction ensure reliable connections even in harsh conditions.
  • The operating temperature range for SFML-105-03-S-D-LC is -55°C to +125°C, making it suitable for a wide range of applications, including industrial, automotive, and aerospace.
  • Yes, SFML-105-03-S-D-LC is compatible with lead-free soldering processes, making it suitable for RoHS-compliant designs.
  • The mating cycle life for SFML-105-03-S-D-LC is 500 cycles minimum, ensuring reliable connections even in applications with frequent mating and unmating.
