SFML-115-02-S-D-A-K - SAMTEC

Description: Headers & Wire Housings .050" Tiger Eye High-Reliability Locking Socket Strip

Download SFML-115-02-S-D-A-K Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SFML-115-02-S-D-A-K - SAMTEC - PCB symbol
click to zoom

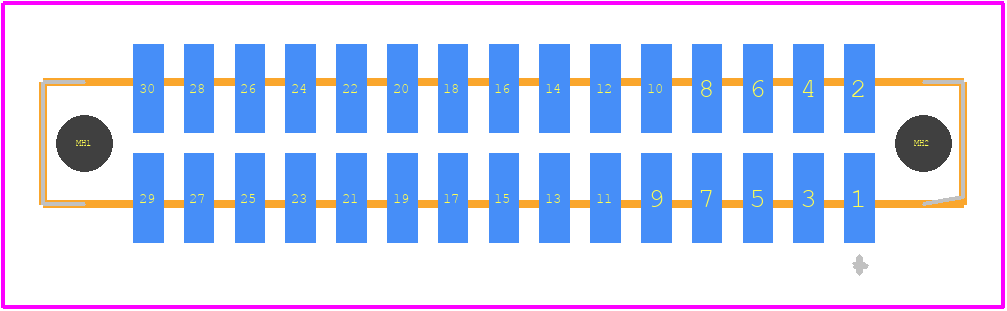

PCB Footprints
SFML-115-02-S-D-A-K - SAMTEC PCB footprint - Other - Other - SFML-115-02-S-D-A-K-1
click to zoom
3D Models
SFML-115-02-S-D-A-K - SAMTEC - 3D model - Other - SFML-115-02-S-D-A-K-1
click to zoom

SFML-115-02-S-D-A-K Details

  • Manufacturer Part Number:

    SFML-115-02-S-D-A-K

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Vietnam

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    12

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    GOLD (30)

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Material:

    BERYLLIUM COPPER

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Rated Current (Signal):

    3.2 A

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    30

  • UL Flammability Code:

    94V-0
