SFML-115-T2-H-D-A footprint, schematic symbol and 3D model by SAMTEC

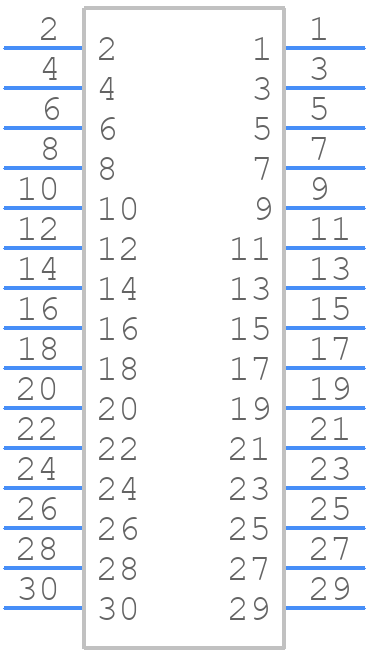

Symbol

click to zoom

PCB Footprints

SFML-115-T2-H-D-A - SAMTEC PCB footprint - Other - Other - SFML-115-SS-YYY-D-A

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SFML-115-T2-H-D-A
Part Number SFML-115-T2-H-D-A
Manufacturer SAMTEC
Pin Count 30
Part Category Connector
Package Category Other
Footprint Name Other - SFML-115-SS-YYY-D-A
Released Date Jun 22, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

SFML-115-T2-H-D-A Details

Manufacturer Part Number:
SFML-115-T2-H-D-A
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Malaysia, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
6 Weeks, 1 Day
Manufacturer:
Samtec Inc
YTEOL:
9.4
Body/Shell Style:
SOCKET
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
GOLD
Contact Finish Termination:
Gold (Au) - with Nickel (Ni) barrier
Contact Gender:
FEMALE
Contact Material:
PHOSPHOR BRONZE
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e4
MIL Conformance:
NO
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
2
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
Rated Current (Signal):
3.2 A
Terminal Pitch:
1.27 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
30

SFML-115-T2-H-D-A Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.5-1.5 in-lbs (0.056-0.169 Nm) to ensure secure connections.
Yes, SFML-115-T2-H-D-A is designed to withstand high-vibration environments. However, it's essential to follow proper mounting and screw torque procedures to ensure reliable connections.
The operating temperature range for SFML-115-T2-H-D-A is -40°C to +105°C (-40°F to +221°F).
Yes, SFML-115-T2-H-D-A is RoHS and REACH compliant, making it suitable for use in European Union and other regions with similar regulations.
The recommended wire size for the screw terminals is 24-20 AWG (0.25-0.5 mm²).

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

SFML-115-T2-H-D-A Overview

Use the download button to access the SFML-115-T2-H-D-A schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like SFML-, or try a keyword search, such as Headers and Edge Type Connectors
