SFML-125-02-S-D footprint, schematic symbol and 3D model by SAMTEC

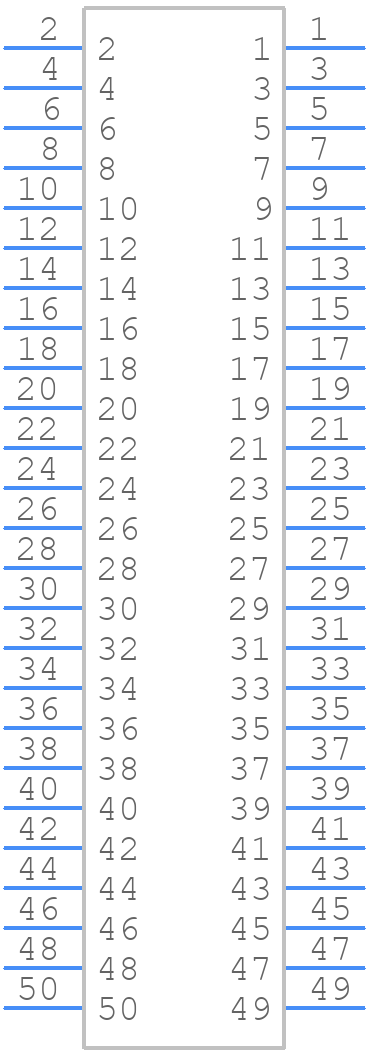

Symbol

click to zoom

PCB Footprints

SFML-125-02-S-D - SAMTEC PCB footprint - Other - Other - SFML-125-SS-YYY-D

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SFML-125-02-S-D
Part Number SFML-125-02-S-D
Manufacturer SAMTEC
Pin Count 50
Part Category Connector
Package Category Other
Footprint Name Other - SFML-125-SS-YYY-D
Released Date Jun 22, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

SFML-125-02-S-D Details

Manufacturer Part Number:
SFML-125-02-S-D
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
USA, Vietnam
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
4 Weeks, 6 Days
Manufacturer:
Samtec Inc
YTEOL:
9.4
Body/Shell Style:
SOCKET
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
FEMALE
Contact Material:
PHOSPHOR BRONZE/BERYLLIUM COPPER
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e3
MIL Conformance:
NO
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
2
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
Rated Current (Signal):
3.2 A
Terminal Pitch:
1.27 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
50

SFML-125-02-S-D Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.5-1.5 in-lbs (0.056-0.169 Nm) to ensure secure connections.
Yes, SFML-125-02-S-D is designed to withstand high-vibration environments. Samtec's SFML series is tested to meet the requirements of IEC 61373 Category 2, which includes vibration testing up to 57.3 m/s² (20-2000 Hz).
The operating temperature range for SFML-125-02-S-D is -55°C to +125°C, making it suitable for a wide range of applications, including industrial, automotive, and aerospace.
Yes, SFML-125-02-S-D is compatible with lead-free soldering processes. Samtec's SFML series is designed to meet the requirements of RoHS and WEEE directives, ensuring compliance with lead-free soldering processes.
The mating cycle life for SFML-125-02-S-D is 500 cycles minimum, ensuring reliable connections even in applications with frequent mating and unmating.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

SFML-125-02-S-D Overview

Use the download button to access the SFML-125-02-S-D schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like SFML-, or try a keyword search, such as Headers and Edge Type Connectors
