SFML-140-02-S-D footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

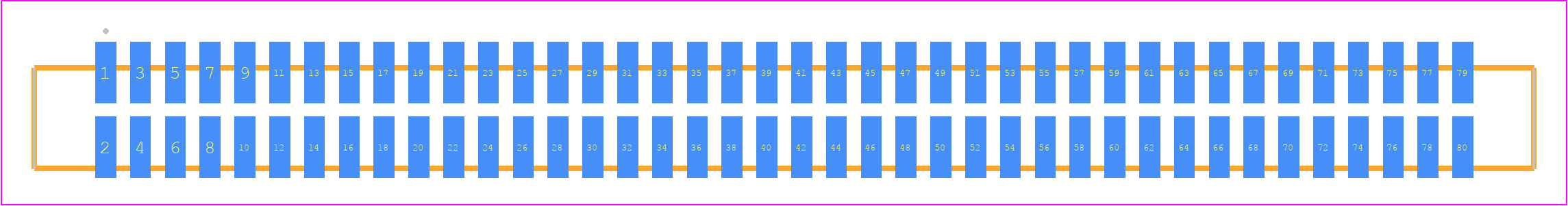

SFML-140-02-S-D - SAMTEC PCB footprint - Other - Other - SFML-140-SS-YYY-D

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SFML-140-02-S-D
Part Number SFML-140-02-S-D
Manufacturer SAMTEC
Pin Count 80
Part Category Connector
Package Category Other
Footprint Name Other - SFML-140-SS-YYY-D
Released Date Jun 2, 2019
Last Modified Date Sep 9, 2025 9:48 AM UTC
Pinout / Pin List Click Here (Member Only)

SFML-140-02-S-D Details

Manufacturer Part Number:
SFML-140-02-S-D
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Malaysia, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Samtec Inc
YTEOL:
9.4
Body/Shell Style:
SOCKET
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
FEMALE
Contact Material:
PHOSPHOR BRONZE/BERYLLIUM COPPER
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e3
MIL Conformance:
NO
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
2
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
Rated Current (Signal):
3.2 A
Terminal Pitch:
1.27 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
80

SFML-140-02-S-D Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.5-1.5 in-lbs (0.056-0.169 Nm) to ensure secure connections.
Yes, SFML-140-02-S-D is designed to withstand vibrations up to 10G (10 times the force of gravity) and is suitable for use in high-vibration applications.
The operating temperature range for SFML-140-02-S-D is -40°C to +105°C (-40°F to +221°F), making it suitable for use in a wide range of environments.
Yes, SFML-140-02-S-D is compatible with lead-free soldering processes and meets the requirements of the RoHS (Restriction of Hazardous Substances) directive.
The maximum current rating for each contact is 3.5 A (Amps) per contact, making it suitable for use in applications with moderate current requirements.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

SFML-140-02-S-D Overview

Use the download button to access the SFML-140-02-S-D schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like SFML-, or try a keyword search, such as Headers and Edge Type Connectors
