SFN4D-DC24V - Panasonic

SFN4D-DC24V Details

• Manufacturer Part Number:

  SFN4D-DC24V

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.41.00.20

• Factory Lead Time:

  13 Weeks

• Manufacturer:

  Panasonic Electronic Components

• YTEOL:

  6.27

• Body Breadth:

  33 mm

• Body Height:

  14.5 mm

• Body Length or Diameter:

  53.3 mm

• Coil Current(DC)-Max:

  0.016 A

• Coil Operate Voltage(DC):

  18 V

• Coil Power:

  420 mW

• Coil Release Voltage(DC):

  6 V

• Coil Resistance:

  1476.9 Ω

• Coil Voltage(DC)-Max:

  24 V

• Coil Voltage-Nom:

  24 V

• Coil/Input Supply Type:

  DC

• Contact (AC) Max Rating R Load:

  8A@230VAC

• Contact Current(AC)-Max:

  8 A

• Contact Current(DC)-Max:

  6 A

• Contact (DC) Max Rating R Load:

  6A@24VDC

• Contact Resistance:

  30 mΩ

• Contact Voltage(AC)-Max:

  230 V

• Contact Voltage(DC)-Max:

  24 V

• Contact/Output Supply Type:

  AC/DC

• Electrical Life:

  85000 Cycle(s)

• End Contact Material:

  Silver Tin Oxide

• End Contact Plating:

  GOLD

• Input Switching Control Type:

  Random

• Insulation Resistance:

  1000000000 Ω

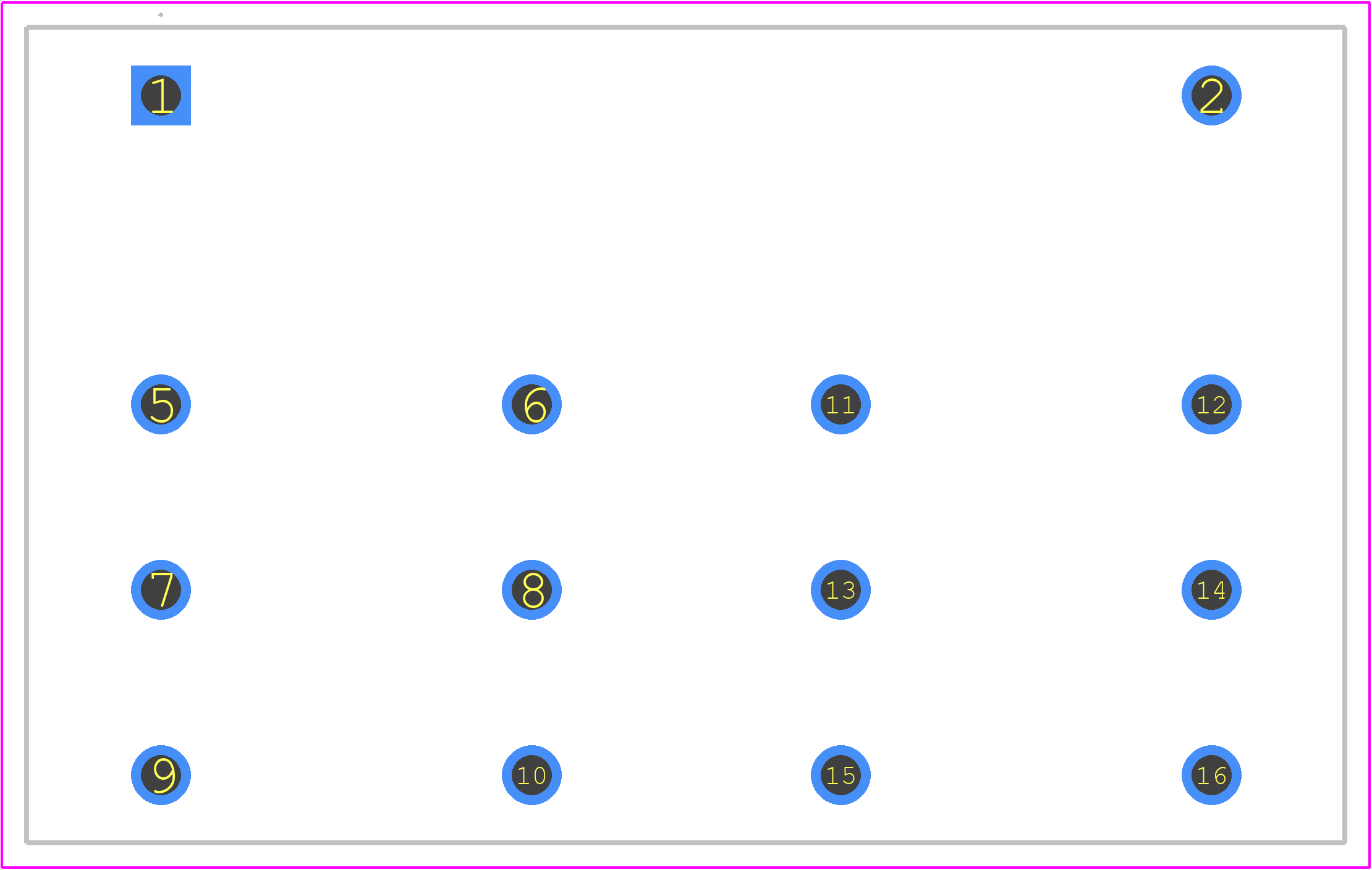

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Number of Terminals:

  14

• Operate Time:

  25 ms

• Operating Temperature-Max:

  92 °C

• Operating Temperature-Min:

  -25 °C

• Physical Dimension:

  53.3mm x 33mm x 14.5mm

• Reference Standard:

  SEV; TUV; UL

• Relay Action:

  MOMENTARY

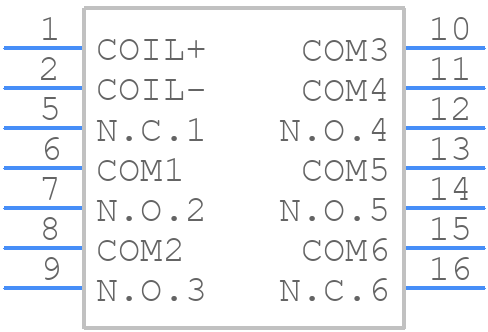

• Relay Function:

  4PDT

• Relay Type:

  POWER/SIGNAL RELAY

• Release Time:

  8 ms

• Sealing:

  RT3

• Surface Mount:

  NO

• Terminal Length:

  0.002999745999491999 inch

• Termination Type:

  SOLDER
