SFR25000Z0000ZA500 - Vishay

Description: Metal Film Resistors - Through Hole 0.4watt Jumper

Download SFR25000Z0000ZA500 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SFR25000Z0000ZA500 - Vishay - PCB symbol
click to zoom
PCB Footprints

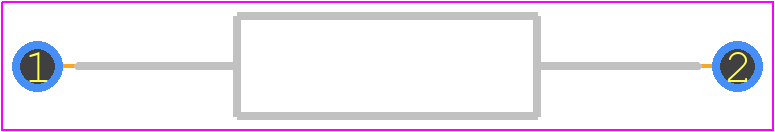

SFR25000Z0000ZA500 - Vishay PCB footprint - Resistors, Axial Diameter Horizontal Mounting - Resistors, Axial Diameter Horizontal Mounting - SFR25000Z0000ZA500
click to zoom
3D Models
SFR25000Z0000ZA500 - Vishay - 3D model - Resistors, Axial Diameter Horizontal Mounting - SFR25000Z0000ZA500
click to zoom

SFR25000Z0000ZA500 Details

  • Manufacturer Part Number:

    SFR25000Z0000ZA500

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    AXIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.90

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    0

  • Construction:

    Cylindrical

  • JESD-609 Code:

    e3

  • Lead Diameter:

    0.58 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    155 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Diameter:

    2.5 mm

  • Package Length:

    6.5 mm

  • Package Shape:

    TUBULAR PACKAGE

  • Package Style:

    Axial

  • Packing Method:

    AMMO PACK

  • Rated Power Dissipation (P):

    0.4 W

  • Rated Temperature:

    70 °C

  • Resistor Type:

    JUMPER

  • Surface Mount:

    NO

  • Technology:

    METAL FILM

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Shape:

    WIRE

SFR25000Z0000ZA500 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the SFR25000Z0000ZA500 is 260°C for 10 seconds, with a peak temperature of 240°C.
  • Yes, the SFR25000Z0000ZA500 is designed for high-frequency applications, with a self-resonant frequency of 100 MHz and a low inductance of 0.5 nH.
  • The SFR25000Z0000ZA500 has a maximum operating temperature of 150°C, making it suitable for high-temperature applications. However, derating is required above 125°C.
  • The power rating of the SFR25000Z0000ZA500 at 70°C is 0.5 W, with a derated power of 0.25 W at 125°C.
  • Yes, the SFR25000Z0000ZA500 is AEC-Q200 qualified, making it suitable for automotive applications.
