SFS2-DC21V - Panasonic

Description: Panasonic PCB Mount Force Guided Relay, 21V DC Coil Voltage, 6A Switching Current

Download SFS2-DC21V Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this SFS2-DC21V model

Email notifications will be applied after download.

Send part feedback

Symbol

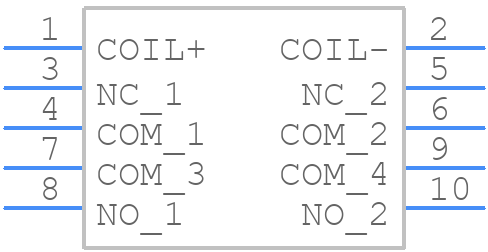

SFS2-DC21V - Panasonic - PCB symbol

PCB Footprints

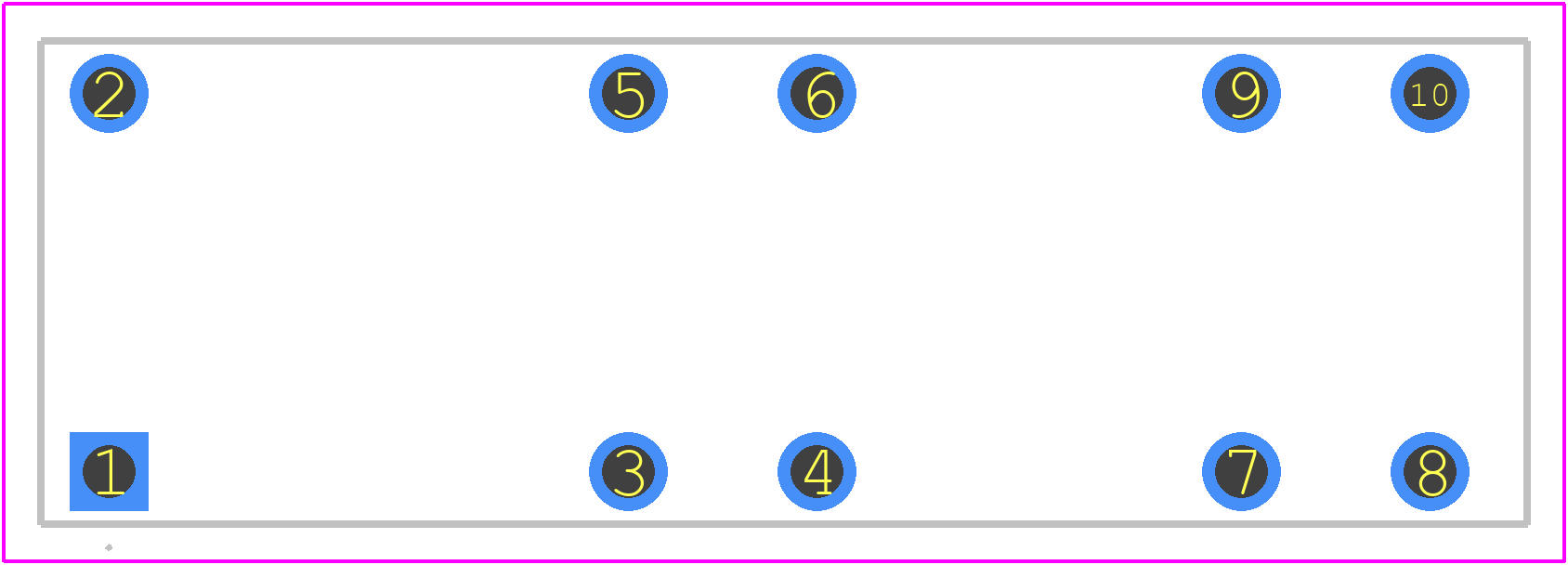

SFS2-DC21V - Panasonic PCB footprint - Other - Other - SFS2-DC21V

3D Models

SFS2-DC21V - Panasonic - 3D model - Other - SFS2-DC21V

Datasheet Download Datasheet
Stock & Prices Price & Stock for SFS2-DC21V
Part Number SFS2-DC21V
Manufacturer Panasonic
Pin Count 10
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - SFS2-DC21V
Released Date Apr 10, 2024
Last Modified Date Apr 10, 2024 9:54 AM UTC
Pinout / Pin List Click Here (Member Only)

SFS2-DC21V Details

Manufacturer Part Number:
SFS2-DC21V
Part Life Cycle Code:
Active
ECCN Code:
EAR99
Manufacturer:
Panasonic Electronic Components

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

SFS2-DC21V Overview

Use the download button to access the SFS2-DC21V schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like SFS2-, or try a keyword search, such as Special Relays
