The maximum switching frequency of the SFS2-L-DC24V-D relay is 20 Hz. Exceeding this frequency may lead to reduced relay life or failure.
The SFS2-L-DC24V-D relay module is designed to operate in temperatures between -40°C to 85°C. Operating outside this range may affect relay performance or lifespan.
Panasonic recommends a minimum PCB spacing of 1.5 mm around the relay module to ensure proper heat dissipation and to prevent electrical interference. A recommended PCB layout is available in the application note.
To ensure reliable relay operation in high-vibration environments, Panasonic recommends securing the relay module to the PCB using the provided mounting holes and using a vibration-dampening material, such as a silicone adhesive, to reduce mechanical stress.
The recommended derating curve for the SFS2-L-DC24V-D relay module is available in the application note. It provides guidance on reducing the relay's switching capacity as the ambient temperature increases.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SFS2-L-DC24V-D Overview

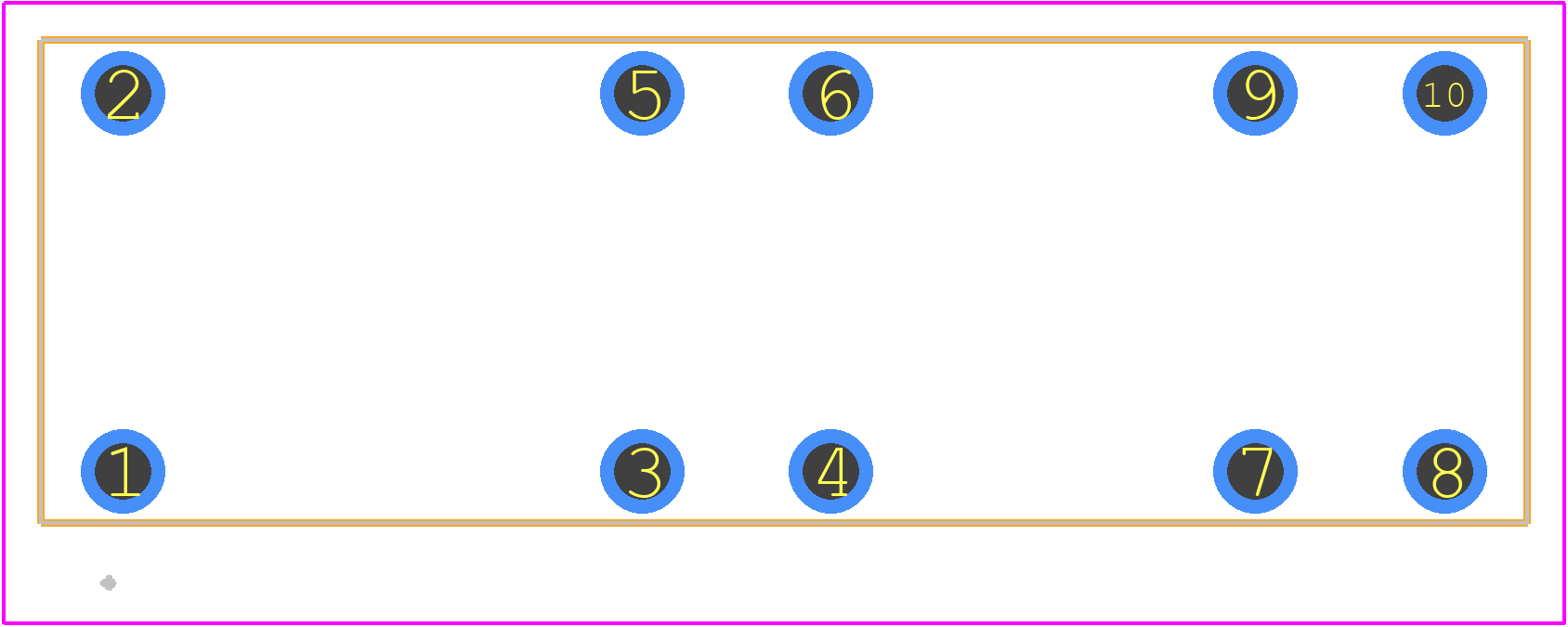

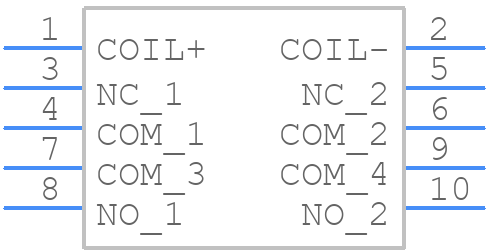

Use the download button to access the SFS2-L-DC24V-D schematic symbol, PCB footprint, and 3D model.
