SFS3-DC18V - Panasonic

Description: SF Slim Type Series Relay ,3 Form A 1 Form B ,360mW ,Au-flashed AgSnO2 type ,Single side stable .

Download SFS3-DC18V Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this SFS3-DC18V model

Email notifications will be applied after download.

Send part feedback

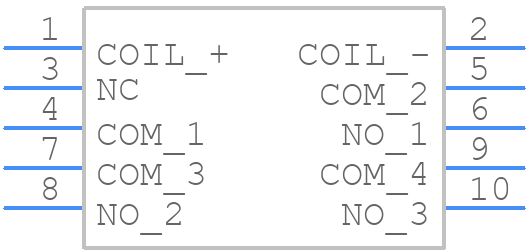

Symbol

SFS3-DC18V - Panasonic - PCB symbol

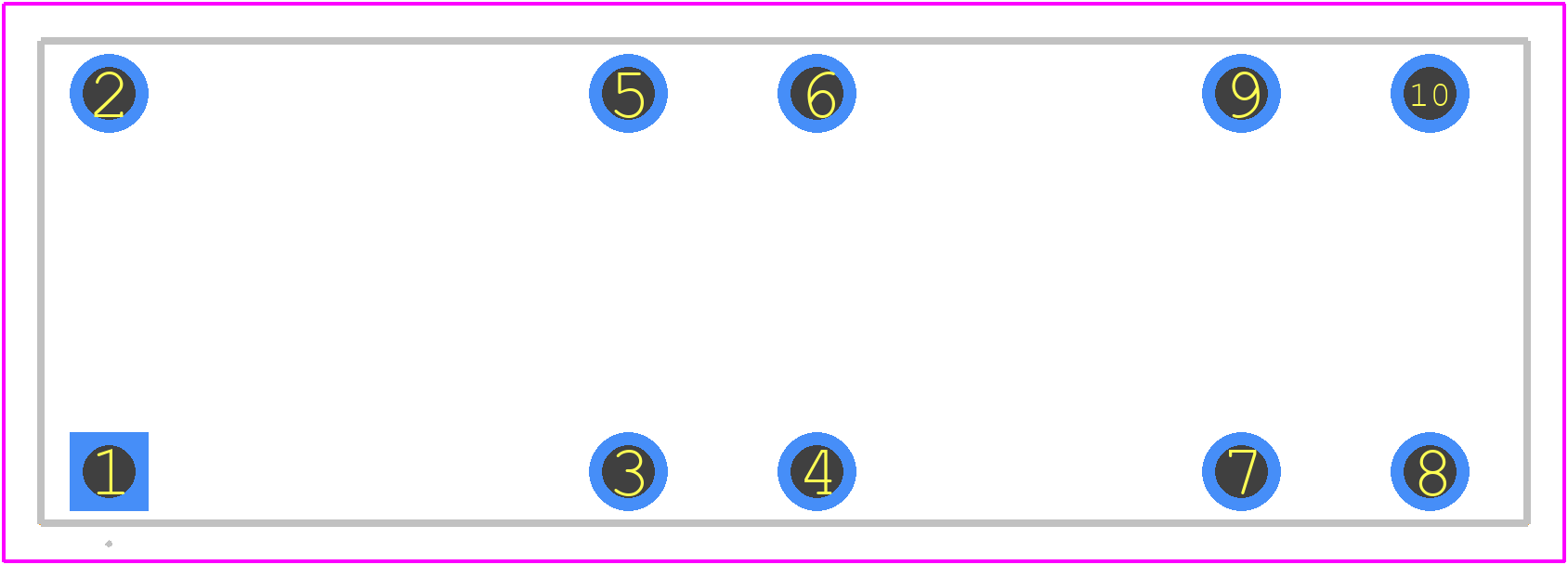

PCB Footprints

SFS3-DC18V - Panasonic PCB footprint - Other - Other - SFS3-DC18V

3D Models

SFS3-DC18V - Panasonic - 3D model - Other - SFS3-DC18V

Datasheet Download Datasheet
Stock & Prices Price & Stock for SFS3-DC18V
Part Number SFS3-DC18V
Manufacturer Panasonic
Pin Count 10
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - SFS3-DC18V
Released Date Apr 11, 2024
Last Modified Date Apr 11, 2024 8:10 AM UTC
Pinout / Pin List Click Here (Member Only)

SFS3-DC18V Details

Manufacturer Part Number:
SFS3-DC18V
Part Life Cycle Code:
Active
ECCN Code:
EAR99
Manufacturer:
Panasonic Electronic Components

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

SFS3-DC18V Overview

Use the download button to access the SFS3-DC18V schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like SFS3-, or try a keyword search, such as Special Relays
