SFS3-DC21V - Panasonic

Description: RELAY SAFETY 4PST 6A 24V, 250VAC, 30VDC - Max, 4PST-3NO/1NC (3 Form A, 1 Form B), -40°C ~ 85°C.

Download SFS3-DC21V Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this SFS3-DC21V model

Email notifications will be applied after download.

Send part feedback

Symbol

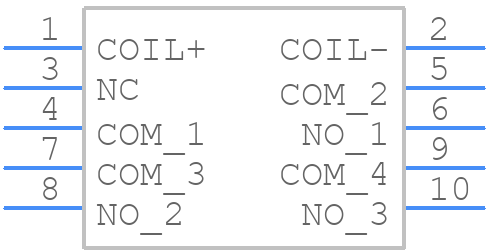

SFS3-DC21V - Panasonic - PCB symbol

PCB Footprints

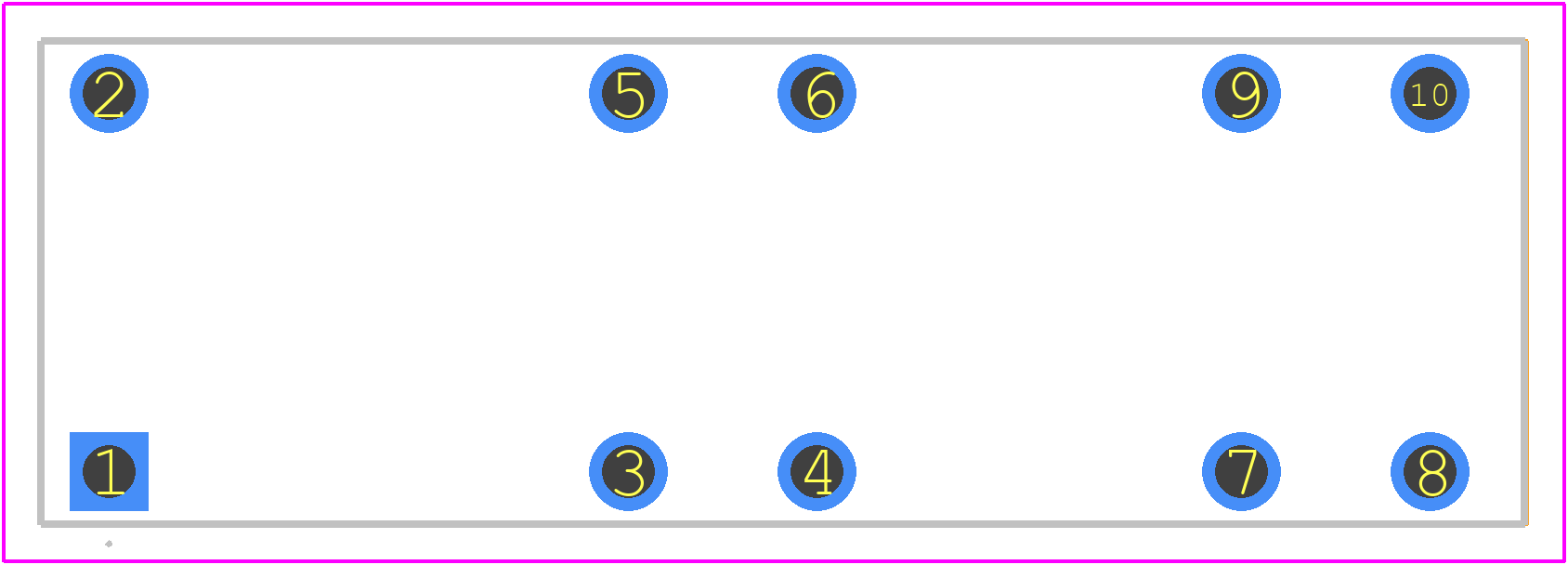

SFS3-DC21V - Panasonic PCB footprint - Other - Other - SFS3-DC21V-2

3D Models

SFS3-DC21V - Panasonic - 3D model - Other - SFS3-DC21V-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for SFS3-DC21V
Part Number SFS3-DC21V
Manufacturer Panasonic
Pin Count 10
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - SFS3-DC21V-2
Released Date Apr 10, 2024
Last Modified Date Apr 10, 2024 9:55 AM UTC
Pinout / Pin List Click Here (Member Only)

SFS3-DC21V Details

Manufacturer Part Number:
SFS3-DC21V
Part Life Cycle Code:
Active
ECCN Code:
EAR99
Manufacturer:
Panasonic Electronic Components

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

SFS3-DC21V Overview

Use the download button to access the SFS3-DC21V schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like SFS3-, or try a keyword search, such as Special Relays
