Panasonic provides a recommended PCB layout and land pattern in their application notes or design guides. It's essential to follow these guidelines to ensure proper soldering, thermal management, and to prevent damage to the relay.
The SFS3-L-DC12V-D has a high inrush current during switching, which can cause voltage drops or even damage to the relay. To mitigate this, use a soft-start circuit or an inrush current limiter, and ensure the power supply can handle the inrush current.
While the datasheet specifies an operating temperature range, it's essential to consider the relay's performance in extreme environments, such as high humidity, vibration, or extreme temperatures. Consult with Panasonic or a qualified engineer to determine the relay's suitability for your specific application.
To ensure EMC, follow proper PCB design and layout practices, use shielding or filtering components, and consider the relay's emissions and susceptibility to electromagnetic interference (EMI). Consult with an EMC expert or refer to relevant industry standards.
The SFS3-L-DC12V-D has a specified lifespan, but it's essential to consider the relay's operating conditions, switching frequency, and environmental factors that can affect its lifespan. Plan for relay replacement or design in redundancy to ensure system reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SFS3-L-DC12V-D Overview

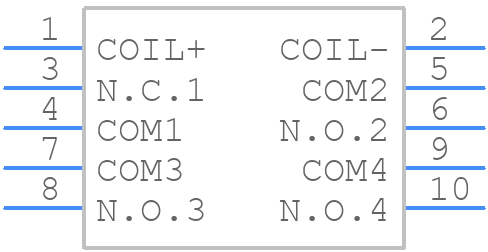

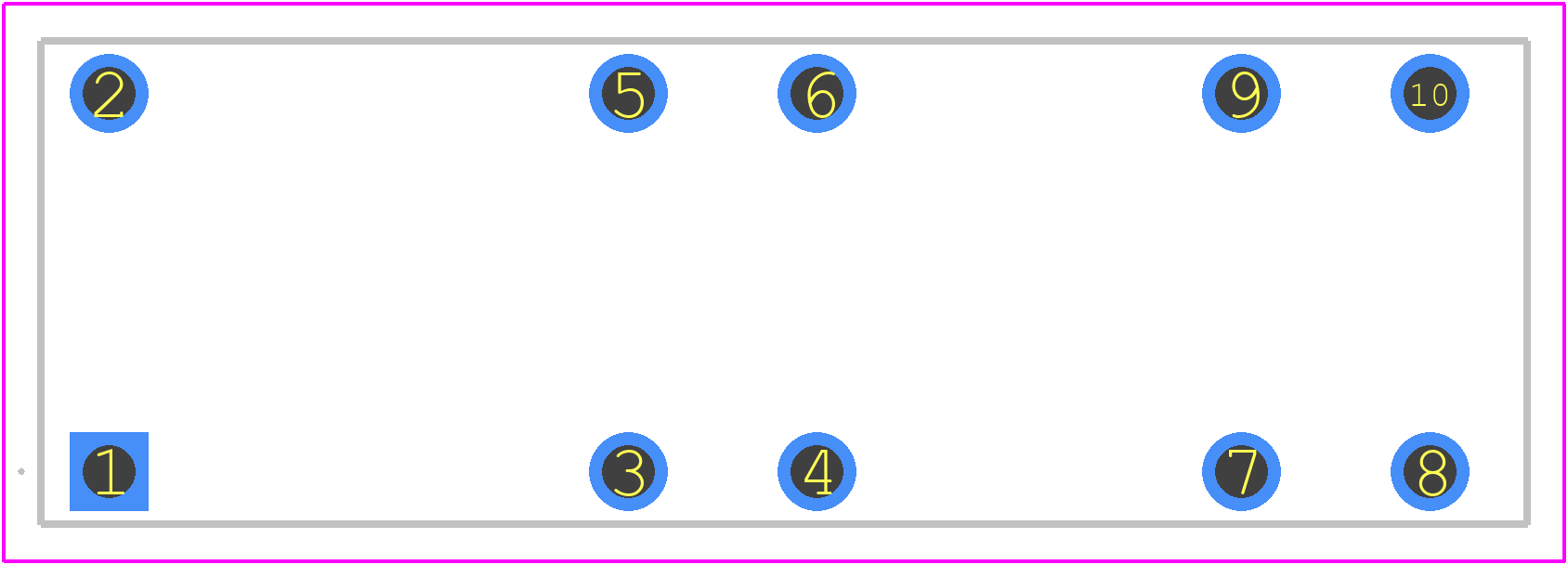

Use the download button to access the SFS3-L-DC12V-D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SFS3-,
or try a keyword search, such as Special Relays
