The maximum switching frequency of the SFS3-L-DC24V-D relay is 20 Hz. Exceeding this frequency may reduce the relay's lifespan.
No, the SFS3-L-DC24V-D relay is designed to switch DC loads only. Using it to switch AC loads may damage the relay or cause it to malfunction.
The minimum load current required for reliable operation is 10 mA. Operating the relay with a load current below this value may cause it to malfunction.
The SFS3-L-DC24V-D relay is designed to operate in temperatures between -40°C and 85°C. Operating it outside this temperature range may affect its performance or lifespan.
The recommended PCB layout and spacing for the SFS3-L-DC24V-D relay can be found in the Panasonic application note AN13184. Following these guidelines ensures reliable operation and minimizes electromagnetic interference.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SFS3-L-DC24V-D Overview

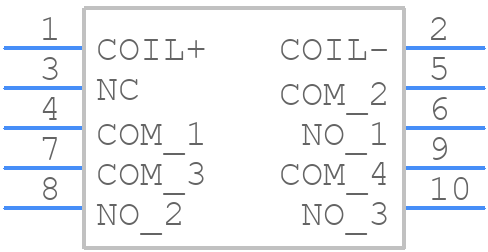

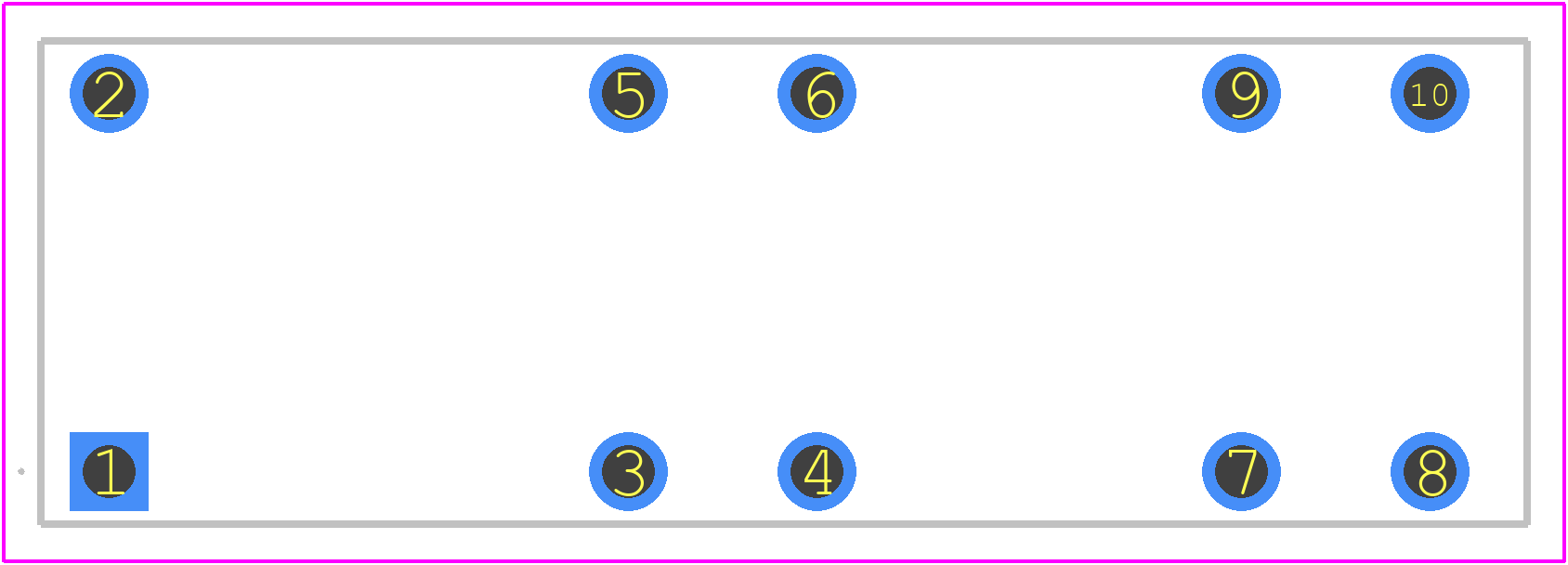

Use the download button to access the SFS3-L-DC24V-D schematic symbol, PCB footprint, and 3D model.
