Part Image

SFS3-L-DC48V-D - Panasonic

Description: Safety Relay 4PST-3NO/1NC (3 Form A, 1 Form B) 48VDC Coil Through Hole , 6 A , 20 ms , -40°C ~ 85°C

Download SFS3-L-DC48V-D Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this SFS3-L-DC48V-D model

Email notifications will be applied after download.

Send part feedback

Symbol

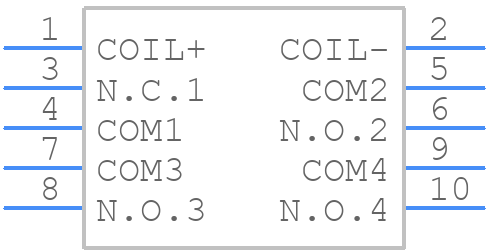

SFS3-L-DC48V-D - Panasonic - PCB symbol

PCB Footprints

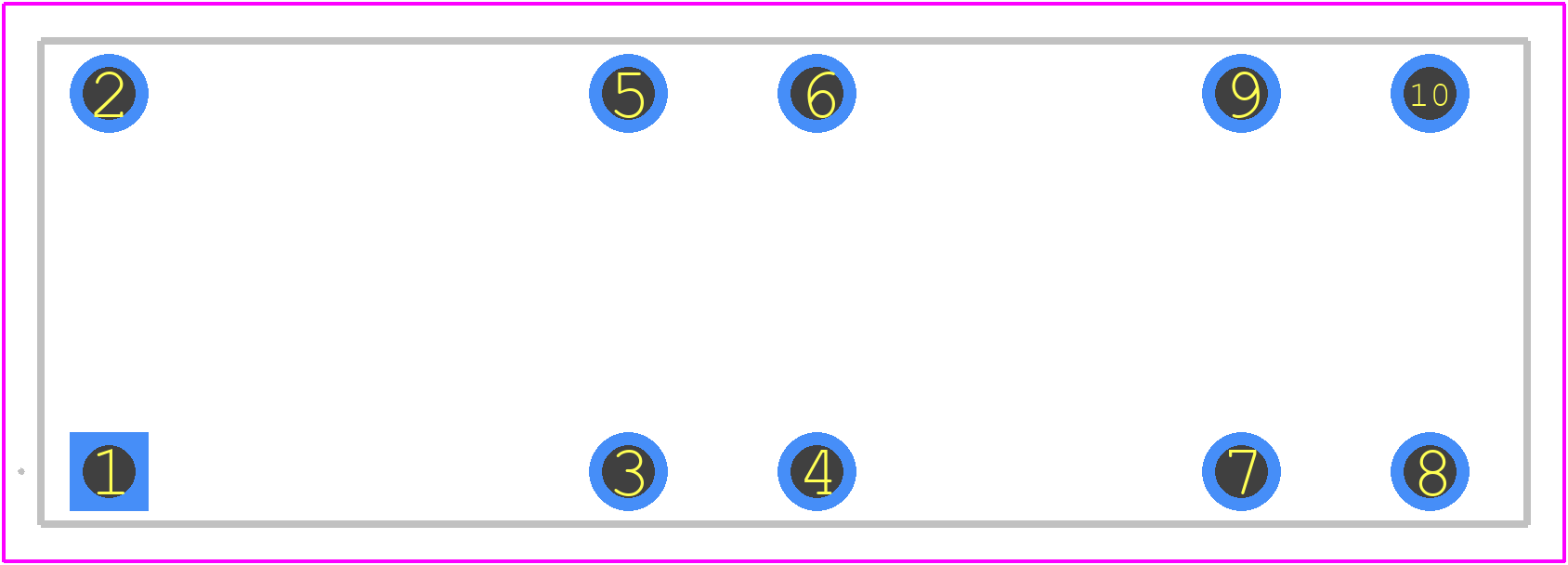

SFS3-L-DC48V-D - Panasonic PCB footprint - Other - Other - SFS3-L-DC48V-D-2

3D Models

SFS3-L-DC48V-D - Panasonic - 3D model - Other - SFS3-L-DC48V-D-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for SFS3-L-DC48V-D
Part Number SFS3-L-DC48V-D
Manufacturer Panasonic
Pin Count 10
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - SFS3-L-DC48V-D-2
Released Date Jan 21, 2026
Last Modified Date Mar 31, 2026 2:09 PM UTC
Pinout / Pin List Click Here (Member Only)

SFS3-L-DC48V-D Details

Manufacturer Part Number:
SFS3-L-DC48V-D
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
Manufacturer:
Panasonic Electronic Components

Trust Checks

Community Provided

System Verified

Community Approved

SFS3-L-DC48V-D Overview

Use the download button to access the SFS3-L-DC48V-D schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like SFS3-, or try a keyword search, such as Special Relays
