SFS4-DC12V - Panasonic

Description: Slim type Safety relay compliant with Safety standards

Download SFS4-DC12V Model

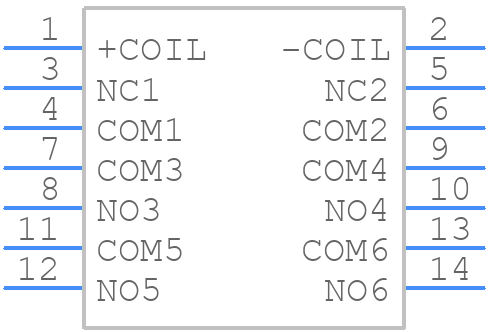

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

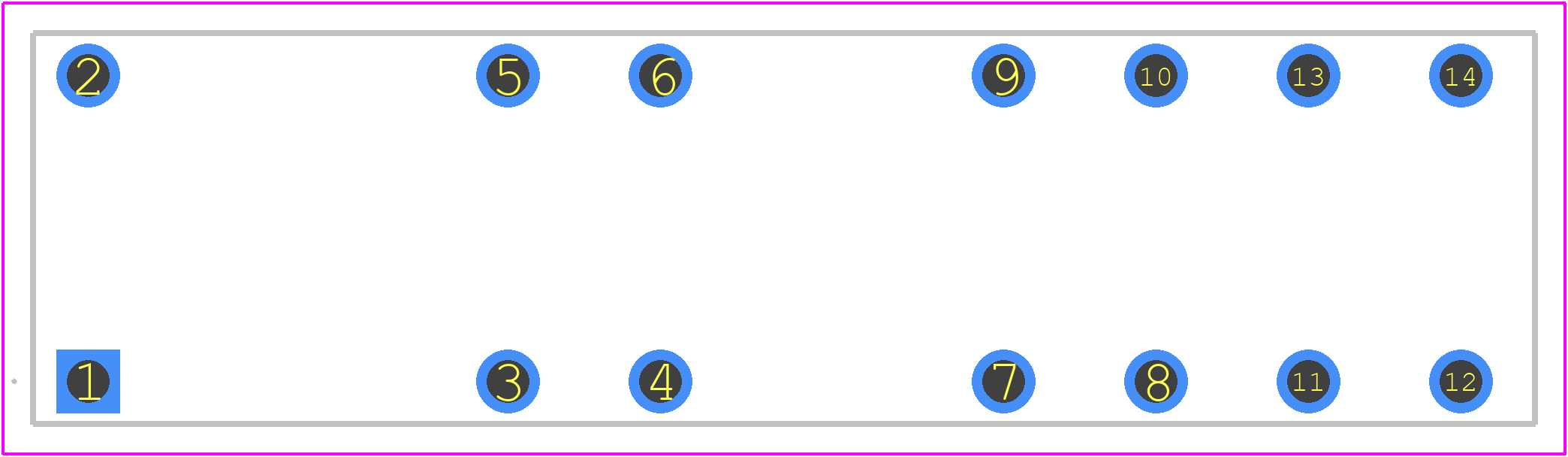

SFS4-DC12V - Panasonic PCB footprint - Other - Other - AG1S041-1
click to zoom
3D Models
SFS4-DC12V - Panasonic  - 3D model - Other - AG1S041-1
click to zoom

SFS4-DC12V Details

  • Manufacturer Part Number:

    SFS4-DC12V

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.41.00.20

  • Factory Lead Time:

    19 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • Body Breadth:

    13 mm

  • Body Height:

    24 mm

  • Body Length or Diameter:

    50 mm

  • Coil Current(DC)-Max:

    0.042 A

  • Coil Operate Voltage(DC):

    9 V

  • Coil Power:

    500 mW

  • Coil Release Voltage(DC):

    1.2 V

  • Coil Resistance:

    288 Ω

  • Coil Voltage(DC)-Max:

    12 V

  • Coil/Input Supply Type:

    DC

  • Contact (AC) Max Rating R Load:

    6A@250VAC

  • Contact Current(AC)-Max:

    6 A

  • Contact Current(DC)-Max:

    6 A

  • Contact (DC) Max Rating R Load:

    6A@30VDC

  • Contact Voltage(AC)-Max:

    250 V

  • Contact Voltage(DC)-Max:

    30 V

  • Contact/Output Supply Type:

    AC/DC

  • Electrical Life:

    100000 Cycle(s)

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT MOUNT

  • Operate Time:

    20 ms

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    BOX

  • Physical Dimension:

    50mm x 13mm x 24mm

  • Reference Standard:

    TUV; UL

  • Relay Action:

    MOMENTARY

  • Relay Function:

    6PST

  • Relay Type:

    SAFETY RELAY

  • Release Time:

    20 ms

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER

SFS4-DC12V Frequently Asked Questions (FAQs)

  • A good PCB layout for the SFS4-DC12V involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces to reduce EMI and noise.
  • To ensure reliability in high-temperature applications, ensure that the device is operated within its specified temperature range, use a heat sink if necessary, and follow proper thermal design and layout guidelines.
  • Exceeding the maximum rated current of the SFS4-DC12V can lead to overheating, reduced lifespan, and potentially even device failure. It is essential to ensure that the device is operated within its specified current rating.
  • While the SFS4-DC12V has some level of transient voltage suppression, it is not designed to withstand high voltage transients. Additional protection circuits may be necessary to ensure device reliability in such applications.
  • To troubleshoot issues with the SFS4-DC12V, check the input voltage, output load, and PCB layout for any anomalies. Verify that the device is operated within its specified parameters and that the application circuit is properly designed and laid out.
