A good PCB layout for the SFS4-DC24V involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces to reduce EMI and noise.
To ensure reliability in high-temperature applications, it's essential to follow the recommended derating curves, ensure good thermal management, and consider using a heat sink or thermal interface material to reduce the junction temperature.
The SFS4-DC24V is not hermetically sealed, so it's essential to take precautions in high-humidity environments. Consider using conformal coating, potting, or encapsulation to protect the device from moisture, and ensure good PCB cleanliness and handling practices.
Yes, you can use multiple SFS4-DC24V devices in parallel to increase the output current. However, it's crucial to ensure that the devices are properly synchronized and that the output currents are balanced to avoid uneven current sharing.
To minimize EMI and ensure EMC compliance, follow good PCB layout practices, use shielding, and consider adding EMI filters or common-mode chokes to the input and output lines. Also, ensure that the device is properly decoupled and that the input and output capacitors are of sufficient value.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SFS4-DC24V Overview

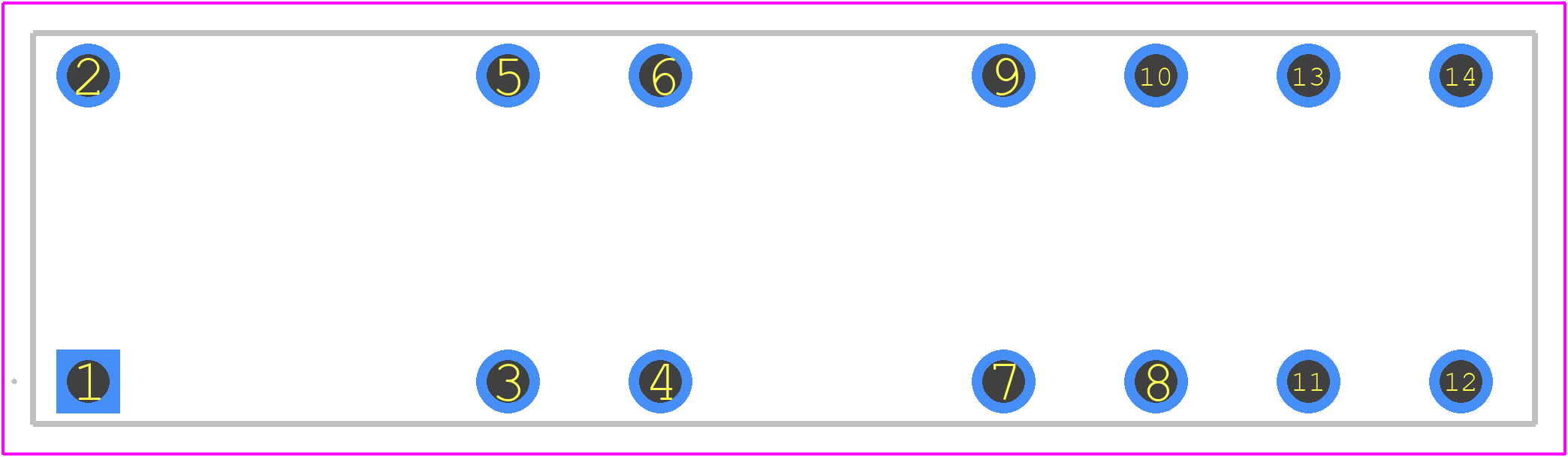

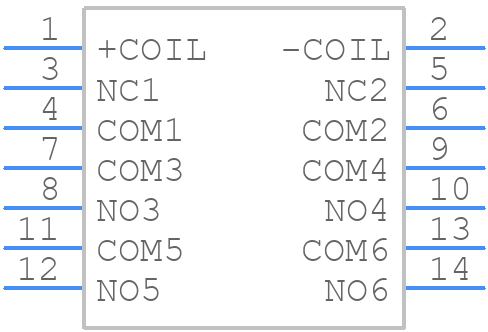

Use the download button to access the SFS4-DC24V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SFS4-,
or try a keyword search, such as Special Relays
