SFS4-DC48V - Panasonic

Description: Slim type Safety relay compliant with Safety standards

Download SFS4-DC48V Model

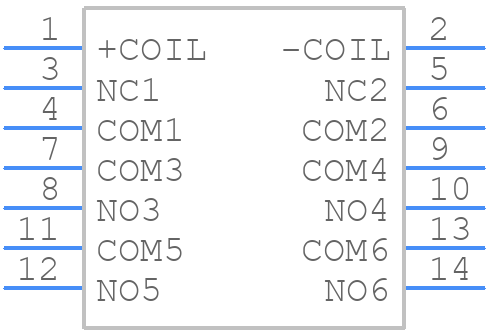

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SFS4-DC48V - Panasonic PCB footprint - Other - Other - AG1S043-1
click to zoom
3D Models
SFS4-DC48V - Panasonic  - 3D model - Other - AG1S043-1
click to zoom

SFS4-DC48V Details

  • Manufacturer Part Number:

    SFS4-DC48V

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.41.00.20

  • Factory Lead Time:

    19 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • Body Breadth:

    13 mm

  • Body Height:

    24 mm

  • Body Length or Diameter:

    50 mm

  • Coil Current(DC)-Max:

    0.01 A

  • Coil Operate Voltage(DC):

    36 V

  • Coil Power:

    500 mW

  • Coil Release Voltage(DC):

    4.8 V

  • Coil Resistance:

    4608 Ω

  • Coil Voltage(DC)-Max:

    48 V

  • Coil/Input Supply Type:

    DC

  • Contact (AC) Max Rating R Load:

    6A@250VAC

  • Contact Current(AC)-Max:

    6 A

  • Contact Current(DC)-Max:

    6 A

  • Contact (DC) Max Rating R Load:

    6A@30VDC

  • Contact Voltage(AC)-Max:

    250 V

  • Contact Voltage(DC)-Max:

    30 V

  • Contact/Output Supply Type:

    AC/DC

  • Electrical Life:

    100000 Cycle(s)

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT MOUNT

  • Operate Time:

    20 ms

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    BOX

  • Physical Dimension:

    50mm x 13mm x 24mm

  • Reference Standard:

    TUV; UL

  • Relay Action:

    MOMENTARY

  • Relay Function:

    6PST

  • Relay Type:

    SAFETY RELAY

  • Release Time:

    20 ms

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER
