A good PCB layout for the SFS6-DC24V involves keeping the input and output capacitors close to the module, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a separate power plane for the input and output to reduce noise and ensure stable operation.
To ensure reliability in high-temperature environments, it's essential to follow proper thermal design guidelines, such as providing adequate airflow, using a heat sink if necessary, and ensuring that the module is operated within its specified temperature range. Additionally, consider using a thermally conductive material, such as a thermal pad or thermal tape, to improve heat dissipation.
Exceeding the maximum rated input voltage of the SFS6-DC24V can cause permanent damage to the module, including overheating, electrical overstress, and reduced lifespan. It's essential to ensure that the input voltage remains within the specified range to maintain the reliability and performance of the module.
Yes, the SFS6-DC24V can be used in a redundant or parallel configuration to achieve higher power output. However, it's crucial to ensure that the modules are properly synchronized and that the output voltages are matched to prevent uneven current sharing and reduce the risk of oscillation.
The SFS6-DC24V is designed to meet CISPR 22 Class B and FCC Part 15 Class B emissions standards. To minimize EMI and RFI, it's recommended to use a metal enclosure, keep the module away from sensitive circuits, and use EMI filters or shielding if necessary.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SFS6-DC24V Overview

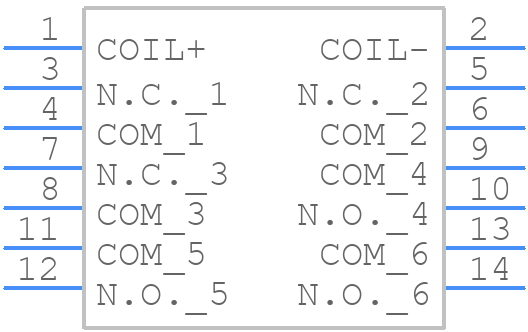

Use the download button to access the SFS6-DC24V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SFS6-,
or try a keyword search, such as Special Relays
