The recommended operating temperature range is -20°C to 60°C, but it's essential to consider the derating curves for temperature and voltage to ensure reliable operation.
Yes, but you should consider adding additional mechanical support or securing thecomponent to the PCB to prevent damage or dislodging due to vibration. Panasonic provides guidance on vibration testing and PCB mounting in their documentation.
Follow proper ESD protection procedures when handling the component, such as wearing an ESD wrist strap, using ESD-safe packing materials, and ensuring the workstation is ESD-protected. Panasonic also recommends storing the component in its original packaging when not in use.
Store the component in a cool, dry place, away from direct sunlight and moisture. The storage temperature should be between -20°C to 30°C, and the humidity should be below 70%. Panasonic provides more detailed guidance on storage conditions in their documentation.
The SFS6-L-DC24V-D has a moisture-sensitivity level of 2, which means it's sensitive to moisture. In humid or high-moisture environments, consider using a moisture-barrier coating or conformal coating on the PCB to prevent moisture ingress. Panasonic provides guidance on moisture protection in their documentation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SFS6-L-DC24V-D Overview

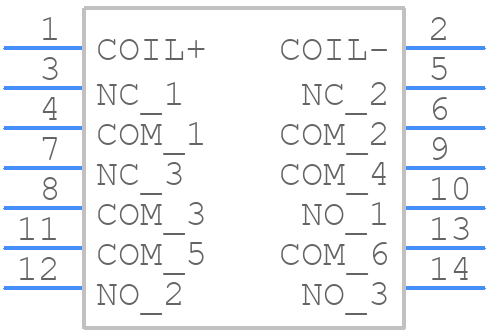

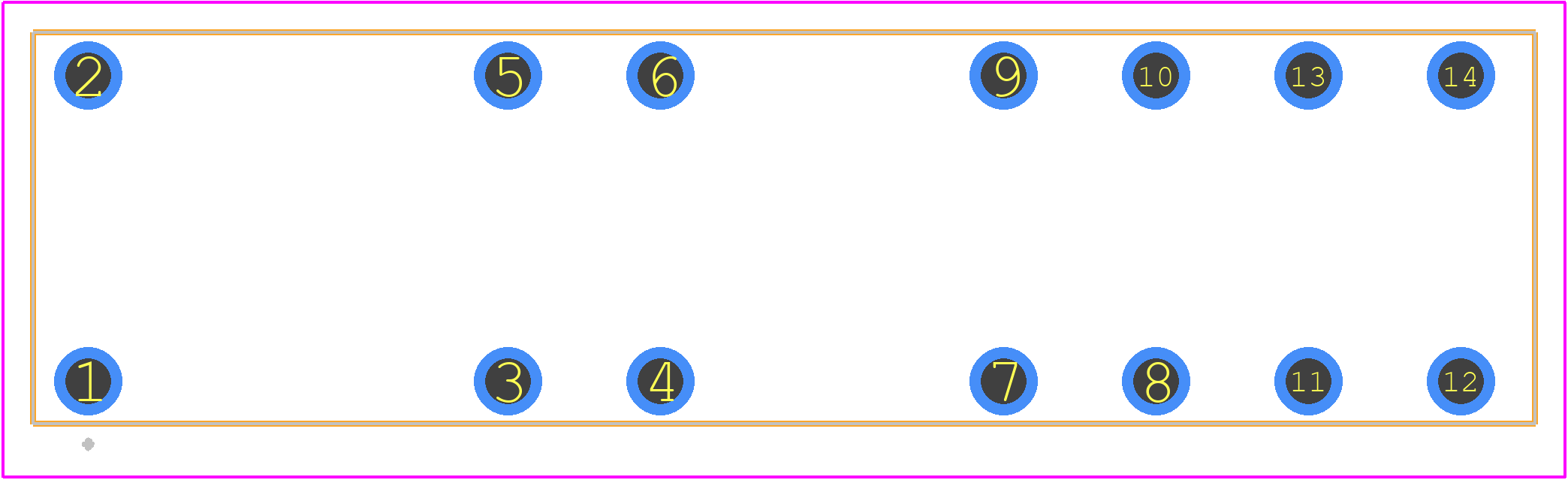

Use the download button to access the SFS6-L-DC24V-D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SFS6-,
or try a keyword search, such as Special Relays
