SFS6-L-DC48V-D - Panasonic

Description: Slim type Safety relay compliant with Safety standards

Download SFS6-L-DC48V-D Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this SFS6-L-DC48V-D model

Email notifications will be applied after download.

Send part feedback

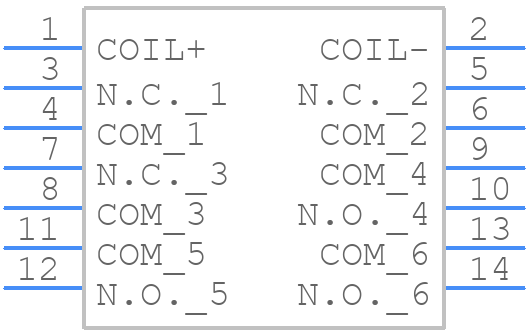

Symbol

SFS6-L-DC48V-D - Panasonic - PCB symbol

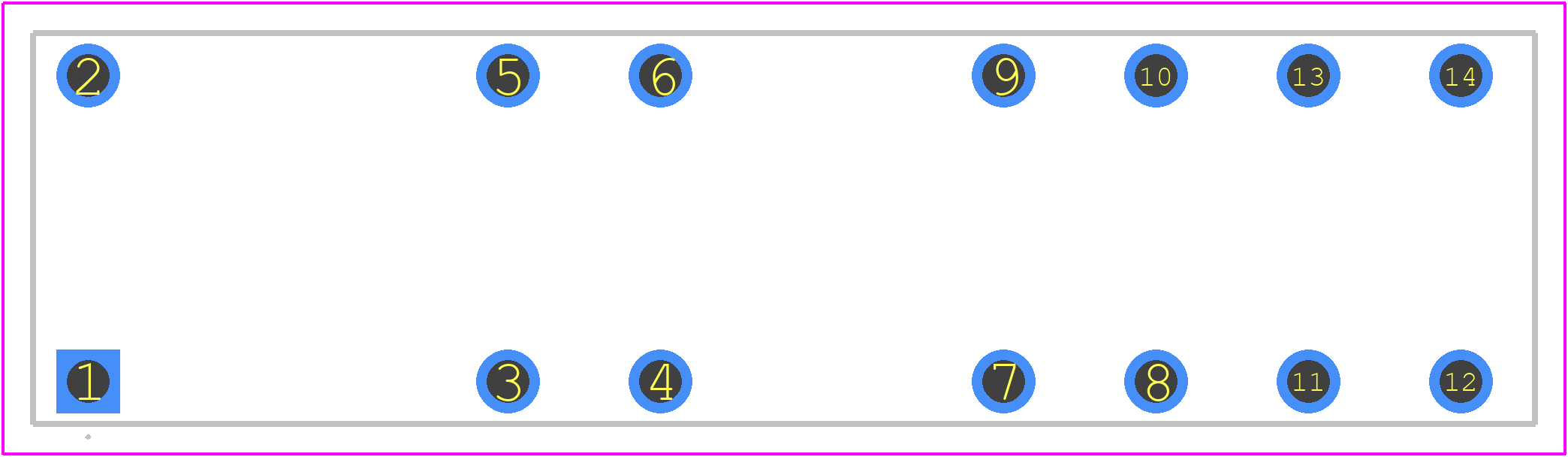

PCB Footprints

SFS6-L-DC48V-D - Panasonic PCB footprint - Other - Other - SFS6-DC12V

3D Models

SFS6-L-DC48V-D - Panasonic - 3D model - Other - SFS6-DC12V

Datasheet Download Datasheet
Stock & Prices Price & Stock for SFS6-L-DC48V-D
Part Number SFS6-L-DC48V-D
Manufacturer Panasonic
Pin Count 14
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - SFS6-DC12V
Released Date Jan 21, 2026
Last Modified Date Mar 31, 2026 8:36 PM UTC
Pinout / Pin List Click Here (Member Only)

SFS6-L-DC48V-D Details

Manufacturer Part Number:
SFS6-L-DC48V-D
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
Factory Lead Time:
19 Weeks
Manufacturer:
Panasonic Electronic Components

Trust Checks

Expert Contribution

System Verified

Community Approved

SFS6-L-DC48V-D Overview

Use the download button to access the SFS6-L-DC48V-D schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like SFS6-, or try a keyword search, such as Special Relays
