SFY4-DC12V - Panasonic

SFY4-DC12V Frequently Asked Questions (FAQs)

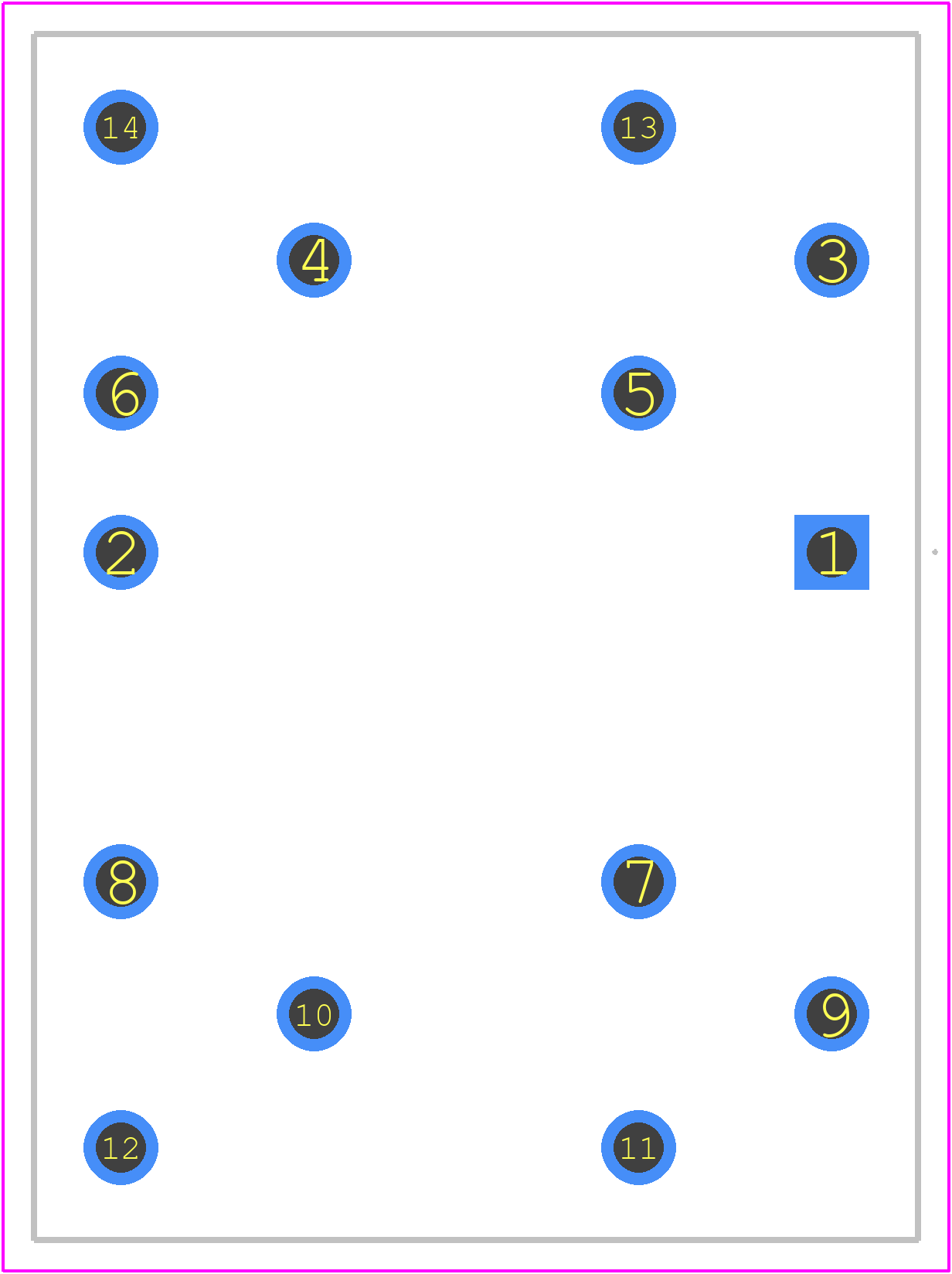

• What is the recommended PCB layout and land pattern for the SFY4-DC12V relay?
  Panasonic provides a recommended PCB layout and land pattern in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure proper mounting and to prevent thermal and electrical issues.
• How do I handle the relay's coil voltage and current in my design?
  The SFY4-DC12V relay has a coil voltage rating of 12V and a coil current rating of 15.6mA. Ensure that your design provides a stable voltage supply and current limiting to prevent overheating and damage to the relay.
• What is the relay's operating temperature range, and how does it affect its performance?
  The SFY4-DC12V relay has an operating temperature range of -40°C to 85°C. Operating the relay outside this range may affect its performance, reliability, and lifespan. Be sure to consider the temperature range in your design and provide adequate cooling if necessary.
• How do I ensure the relay's contacts are clean and free from contamination?
  To ensure the relay's contacts are clean and free from contamination, follow proper handling and storage procedures. Avoid touching the contacts, and use a soft brush or compressed air to clean them if necessary. Apply a contact lubricant or coating to prevent corrosion and ensure reliable operation.
• What is the relay's expected lifespan, and how can I extend it?
  The SFY4-DC12V relay's expected lifespan is approximately 100,000 cycles. To extend its lifespan, ensure proper operating conditions, avoid excessive voltage and current, and minimize the number of switching cycles. Regular maintenance and cleaning can also help prolong the relay's lifespan.
