SG12864H - Sunlike Display

Description: +5 V POWER SUPPLY, 1/64 DUTY CYCLE,8-BIT PARALLEL INTERFACE, 4.2 V LED FORWARD VOLTAGEBUILT-IN CONTROLLER (KS0107 OR EQUIVALENT).75.0 x 52.7 x 7.9 ( 9.2 LED ).

Download SG12864H Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this SG12864H model

Email notifications will be applied after download.

Send part feedback

Symbol

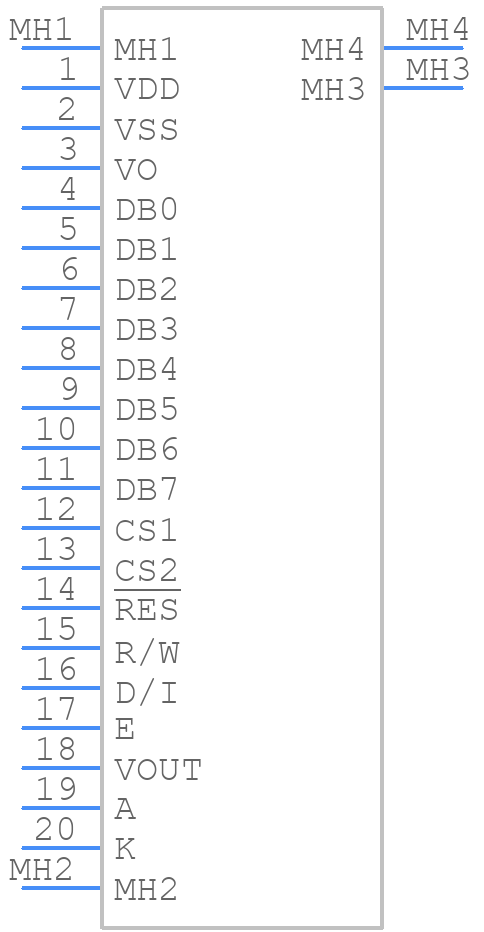

SG12864H - Sunlike Display - PCB symbol

PCB Footprints

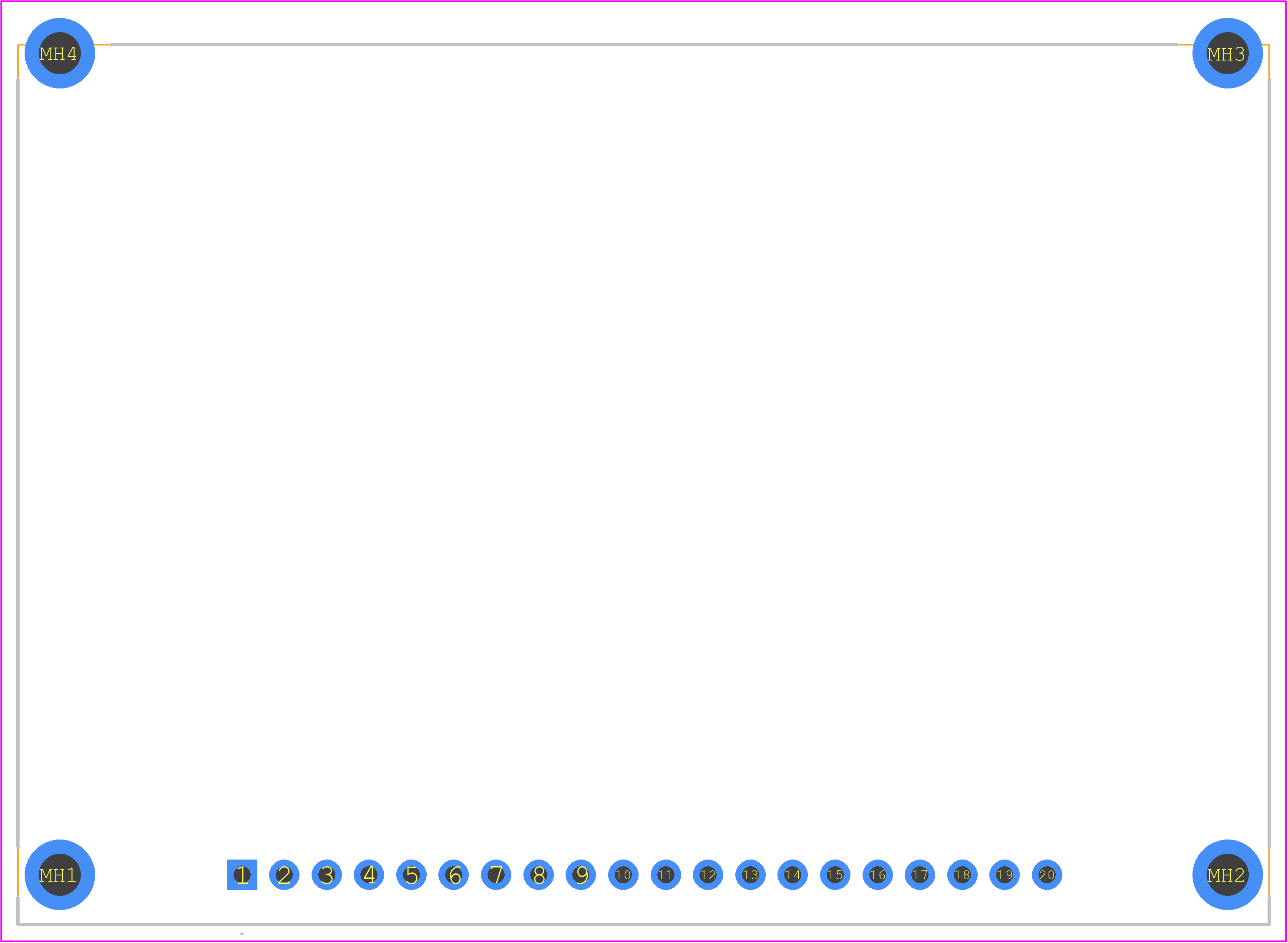

SG12864H - Sunlike Display PCB footprint - Other - Other - SG12864H-1

3D Models

SG12864H - Sunlike Display - 3D model - Other - SG12864H-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for SG12864H
Part Number SG12864H
Manufacturer Sunlike Display
Pin Count 24
Part Category Display
Package Category Other
Footprint Name Other - SG12864H-1
Released Date Nov 10, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

SG12864H Details

Manufacturer Part Number:
SG12864H
Part Life Cycle Code:
Contact Manufacturer
Manufacturer:
Sunlike Display Tech Corp
Horizontal Pixel Count:
128 Pixel
Overall Depth:
7.9 mm
Overall Height:
53 mm
Overall Length:
75 mm
Supply Voltage-Nom:
5 V
Vertical Pixel Count:
64 Pixel
Viewing Area Height:
33 mm
Viewing Area Length:
60 mm

Trust Checks

Community Provided

System Verified

Community Approved

SG12864H Overview

Use the download button to access the SG12864H schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like SG128, or try a keyword search, such as Displays
