SG1526J-883B - Microchip

Description: Switching Controllers Voltage Mode PWMs, High-Reliability Isolated Switching Regulators

Download SG1526J-883B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

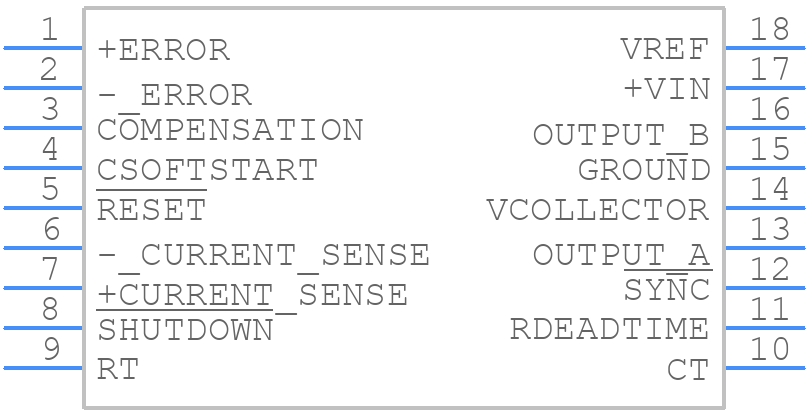

Symbol
SG1526J-883B - Microchip - PCB symbol
click to zoom

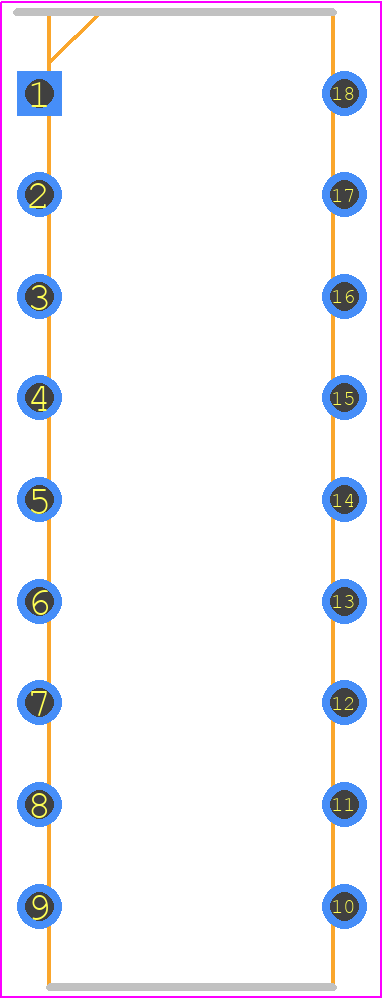

PCB Footprints
SG1526J-883B - Microchip PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - J 18-Pin CERDIP
click to zoom
3D Models
SG1526J-883B - Microchip - 3D model - Ceramic Dual-In-Line Packages - J 18-Pin CERDIP
click to zoom

SG1526J-883B Details

  • Manufacturer Part Number:

    SG1526J-883B

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-18

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    17 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    18

  • Additional Feature:

    "LG=MAX"

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    35 V

  • Input Voltage-Min:

    8 V

  • Input Voltage-Nom:

    15 V

  • JESD-30 Code:

    R-GDIP-T18

  • JESD-609 Code:

    e0

  • Length:

    24.38 mm

  • Number of Functions:

    1

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Current-Max:

    0.2 A

  • Output Voltage-Max:

    5.05 V

  • Output Voltage-Min:

    4.95 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    CERAMIC, GLASS-SEALED

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP18,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Screening Level:

    MIL-STD-883

  • Seated Height-Max:

    5.08 mm

  • Surface Mount:

    NO

  • Switcher Configuration:

    PUSH-PULL

  • Switching Frequency-Max:

    350 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

SG1526J-883B Frequently Asked Questions (FAQs)

  • A good PCB layout for the SG1526J-883B involves keeping the input and output traces separate, using a solid ground plane, and minimizing loop areas to reduce EMI. Additionally, placing decoupling capacitors close to the device can help reduce noise.
  • To ensure proper biasing, connect the VCC pin to a stable voltage source, and decouple it with a capacitor to ground. The input voltage should be within the recommended range, and the output voltage should be properly terminated to prevent oscillations.
  • The maximum power dissipation of the SG1526J-883B is 1.5W. To prevent overheating, ensure good thermal conductivity between the device and the PCB, use a heat sink if necessary, and keep the ambient temperature within the recommended range.
  • Yes, the SG1526J-883B is suitable for switching power supply applications due to its high current capability and fast switching times. However, ensure that the device is properly biased and the output is properly filtered to prevent electromagnetic interference.
  • To troubleshoot issues with the SG1526J-883B, check the PCB layout for proper grounding and decoupling, ensure the input and output voltages are within the recommended range, and verify that the device is properly biased. Use an oscilloscope to visualize the output waveform and identify any anomalies.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SG1526J-883B Overview

Use the download button to access the SG1526J-883B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SG152, or try a keyword search, such as Switching Regulator or Controllers

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
