SG1526J - Microchip

Description: Switching Controllers Voltage Mode PWMs, High-Reliability Isolated Switching Regulators

Download SG1526J Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

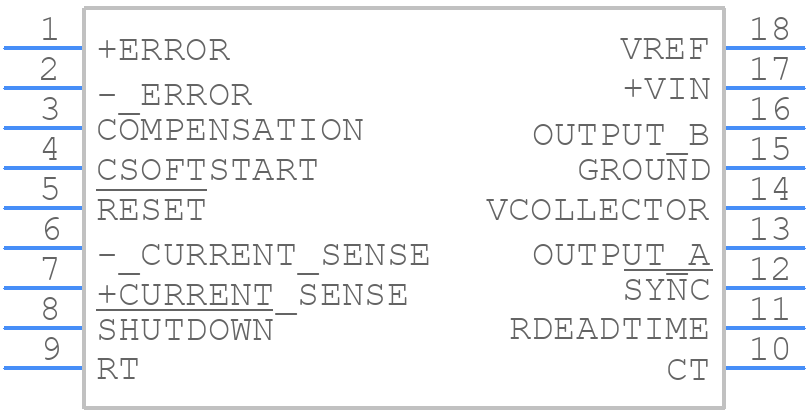

SG1526J - Microchip - PCB symbol
click to zoom
PCB Footprints

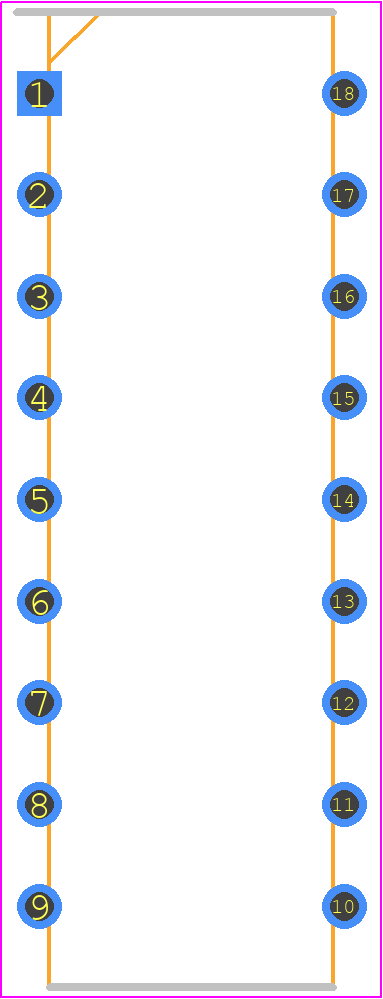

SG1526J - Microchip PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - J 18-Pin CERDIP
click to zoom
3D Models
SG1526J - Microchip - 3D model - Ceramic Dual-In-Line Packages - J 18-Pin CERDIP
click to zoom

SG1526J Details

  • Manufacturer Part Number:

    SG1526J

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-18

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    18

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    35 V

  • Input Voltage-Min:

    8 V

  • Input Voltage-Nom:

    15 V

  • JESD-30 Code:

    R-GDIP-T18

  • JESD-609 Code:

    e0

  • Length:

    24.38 mm

  • Number of Functions:

    1

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Current-Max:

    0.2 A

  • Output Voltage-Max:

    5.05 V

  • Output Voltage-Min:

    4.95 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    CERAMIC, GLASS-SEALED

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP18,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.08 mm

  • Surface Mount:

    NO

  • Switcher Configuration:

    PUSH-PULL

  • Switching Frequency-Max:

    350 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

SG1526J Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane, separate analog and digital power planes, and a decoupling capacitor (e.g., 10uF) close to the IC is recommended. Ensure minimal trace length and impedance matching for the output stage.
  • Use a compensation network (e.g., R-C-R or R-C-C) to stabilize the output stage. Ensure the output capacitor is properly sized and placed close to the IC. Avoid using long, unshielded wires and minimize parasitic inductance.
  • The SG1526J is rated for operation up to 125°C (TJ). However, it's recommended to derate the output power and current to ensure reliable operation above 85°C.
  • Yes, the SG1526J is suitable for switching power supply designs. However, ensure proper layout, decoupling, and filtering to minimize electromagnetic interference (EMI) and ensure reliable operation.
  • Use voltage and current limiting circuits, such as a voltage supervisor or a current sense resistor, to protect the IC from overvoltage and overcurrent conditions. Consider adding a fuse or a PTC (Positive Temperature Coefficient) thermistor for added protection.
