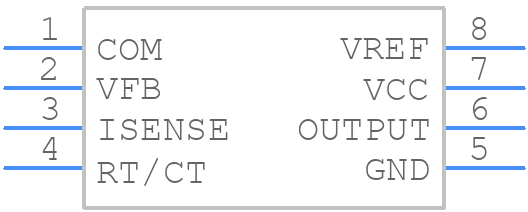

Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for SG1842
- Part Number SG1842
- Manufacturer Microsemi Corporation
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Ceramic Dual-In-Line Packages
- Footprint Name Ceramic Dual-In-Line Packages - 8-Pin CERDIP
- Released Date Dec 28, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
SG1842 Details
-
Manufacturer Part Number:
SG1842
-
Manufacturer:
Microsemi Corporation (now Microchip)
Trust Checks
Community Provided
System Verified
Community Approved
SG1842 Overview
Use the download button to access the SG1842 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like SG184,
or try a keyword search, such as Switching Regulator or Controllers
