SG2526DW - Microchip

Description: Voltage Mode PWM Controller 100mA 350kHz 18-Pin SOIC W Tube

Download SG2526DW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

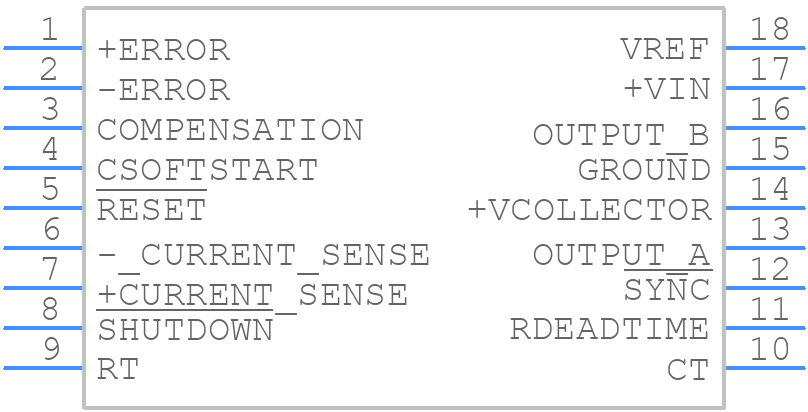

SG2526DW - Microchip - PCB symbol
click to zoom
PCB Footprints
SG2526DW - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 18-Pin Plastic Wide-body SOIC-D
click to zoom
3D Models
SG2526DW - Microchip - 3D model - Small Outline Packages - 18-Pin Plastic Wide-body SOIC-D
click to zoom

SG2526DW Details

  • Manufacturer Part Number:

    SG2526DW

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • Pin Count:

    18

  • Manufacturer Package Code:

    SOIC-18

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    18

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    35 V

  • Input Voltage-Min:

    8 V

  • Input Voltage-Nom:

    15 V

  • JESD-30 Code:

    R-PDSO-G18

  • JESD-609 Code:

    e3

  • Length:

    11.55 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    70 °C

  • Output Current-Max:

    0.2 A

  • Output Voltage-Max:

    5.05 V

  • Output Voltage-Min:

    4.95 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP18,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    PUSH-PULL

  • Switching Frequency-Max:

    350 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    7.5 mm

SG2526DW Frequently Asked Questions (FAQs)

  • A good PCB layout for the SG2526DW involves keeping the input and output stages separate, using a solid ground plane, and minimizing trace lengths and loops. It's also recommended to use a 4-layer board with a dedicated power plane and a dedicated ground plane.
  • To ensure proper biasing, make sure to follow the recommended voltage and current settings outlined in the datasheet. Additionally, use a stable voltage source, and consider using a voltage regulator to maintain a consistent voltage supply.
  • The SG2526DW has a high power dissipation rating, so thermal management is crucial. Ensure good airflow around the device, use a heat sink if necessary, and consider using a thermal interface material to improve heat transfer.
  • To troubleshoot issues, start by verifying the PCB layout and component values. Check for any signs of overheating, and ensure that the device is properly biased. Use an oscilloscope to analyze the output waveform and identify any anomalies. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
  • The SG2526DW is rated for industrial temperature ranges, but for high-reliability or high-temperature applications, consider using a more specialized device or consulting with Microchip's technical support team for guidance on specific requirements and potential modifications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SG2526DW Overview

Use the download button to access the SG2526DW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SG252, or try a keyword search, such as Switching Regulator or Controllers
