Microsemi recommends a 4-layer PCB with a solid ground plane and thermal vias to dissipate heat. The datasheet provides a recommended land pattern, but a more detailed layout guide can be found in the Microsemi application note 'PCB Layout Guidelines for High-Power Devices'.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended derating curves for the device. Additionally, consider using a heat sink, thermal interface material, and ensuring good airflow around the device. Microsemi also recommends using a thermistor or thermocouple to monitor the device temperature.
Using a different input capacitor value than recommended can affect the device's stability, output voltage regulation, and transient response. A larger capacitor value can improve filtering but may increase startup time, while a smaller value may reduce startup time but compromise filtering. It's essential to evaluate the trade-offs and perform thorough testing with the chosen capacitor value.
To troubleshoot oscillations or instability issues, start by verifying the PCB layout and ensuring that the input and output capacitors meet the recommended values and types. Check for proper decoupling, and ensure that the device is properly soldered and connected. Use an oscilloscope to measure the output voltage and current, and look for signs of oscillation or ringing. Consult the Microsemi application note 'Troubleshooting Switching Regulator Systems' for more guidance.
The SG2843DM is designed to meet CISPR 22 Class B and FCC Part 15 Class B emissions standards. To minimize EMI and RFI, follow proper PCB layout and grounding techniques, use a shielded enclosure, and consider adding EMI filters or common-mode chokes to the input and output lines. Consult the Microsemi application note 'Electromagnetic Interference (EMI) and Radio-Frequency Interference (RFI) Considerations' for more information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SG2843DM Overview

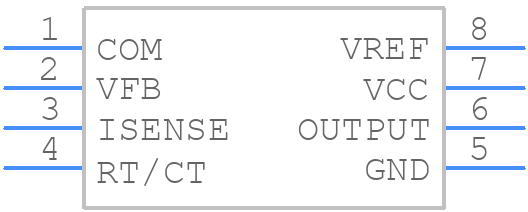

Use the download button to access the SG2843DM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SG284,
or try a keyword search, such as Switching Regulator or Controllers
