The maximum operating frequency of the SG3524N is 400 kHz. However, it's recommended to operate it at a frequency below 350 kHz for optimal performance and to minimize electromagnetic interference (EMI).
To ensure stability, make sure to decouple the Vcc pin with a 10uF capacitor, use a low-ESR output capacitor, and add a 1kΩ resistor in series with the feedback resistor to prevent oscillations.
The soft-start pin (SS) is used to slowly ramp up the output voltage during startup, reducing inrush currents and preventing voltage overshoots. It's recommended to connect a capacitor (typically 10nF to 100nF) from the SS pin to ground to set the soft-start time.
While the SG3524N is primarily designed as a PWM controller for flyback converters, it can be used as a boost converter with some modifications. However, it's essential to ensure the output voltage is within the IC's rating (up to 40V) and to add additional components to prevent overvoltage and overcurrent conditions.
The minimum duty cycle is typically around 0.1% to 1%, while the maximum duty cycle is around 99%. The exact values depend on the specific application, output voltage, and input voltage. Consult the datasheet and application notes for more information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SG3524N Overview

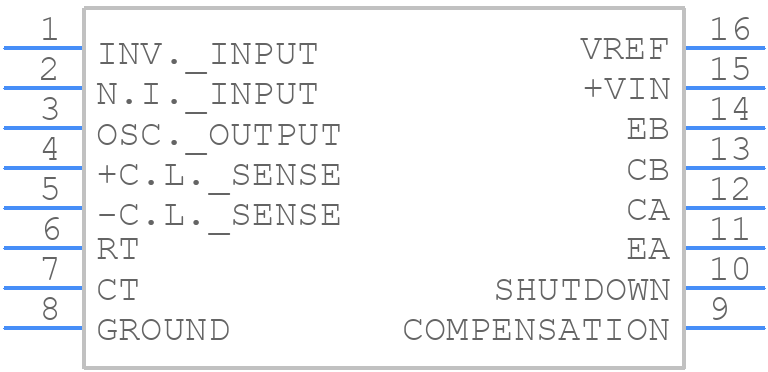

Use the download button to access the SG3524N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SG352,
or try a keyword search, such as Switching Regulator or Controllers
