SG3524N - STMicroelectronics

Description: SG3524N, PWM Voltage Mode Controller, Dual Push-Pull, 100 mA 300 kHz, 16-Pin PDIP

Download SG3524N Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

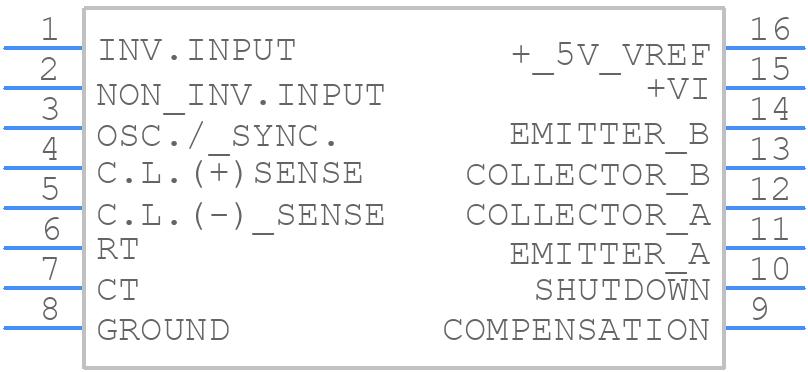

Symbol
SG3524N - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
SG3524N - STMicroelectronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP16_2
click to zoom
3D Models
SG3524N - STMicroelectronics - 3D model - Dual-In-Line Packages - DIP16_2
click to zoom

SG3524N Details

  • Manufacturer Part Number:

    SG3524N

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    DIP-16

  • Pin Count:

    16

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    8 V

  • Input Voltage-Nom:

    20 V

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e4

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Output Current-Max:

    0.1 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    235

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.1 mm

  • Surface Mount:

    NO

  • Switcher Configuration:

    PUSH-PULL

  • Switching Frequency-Max:

    300 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    20

  • Width:

    7.62 mm

SG3524N Frequently Asked Questions (FAQs)

  • The maximum voltage rating for the SG3524N is 40V. However, it's recommended to operate it within 30V to ensure reliable operation.
  • The values of RT and CT depend on the desired oscillator frequency. A good starting point is to use the values recommended in the datasheet (RT = 2.2kΩ, CT = 3.3nF) and then adjust them based on the specific application requirements.
  • The soft-start pin (SS) is used to gradually increase the output voltage during startup, reducing inrush currents and electromagnetic interference (EMI). Connect a capacitor (typically 10nF to 100nF) from the SS pin to ground and a resistor (typically 1kΩ to 10kΩ) from the SS pin to the output voltage.
  • The operating mode depends on the inductor value, output current, and switching frequency. For CCM, use a larger inductor value and ensure the inductor current ripple is less than 20% of the output current. For DCM, use a smaller inductor value and ensure the inductor current ripple is greater than 20% of the output current.
  • The maximum output current capability of the SG3524N is 1A per channel. However, the actual output current depends on the application, PCB layout, and thermal considerations.
