Part Image

SG3524P013TR - STMicroelectronics

Description: Regulating pulse width modulators

Download SG3524P013TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

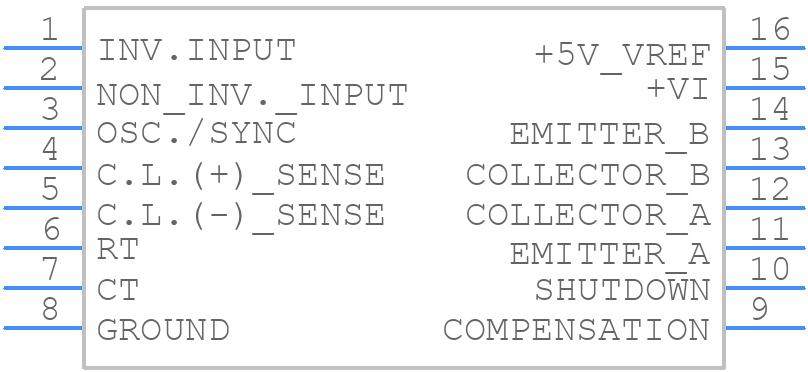

Symbol
SG3524P013TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
SG3524P013TR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-16 Narrow_
click to zoom
3D Models
SG3524P013TR - STMicroelectronics - 3D model - Small Outline Packages - SO-16 Narrow_
click to zoom

SG3524P013TR Details

  • Manufacturer Part Number:

    SG3524P013TR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SO-16

  • Pin Count:

    16

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    8 V

  • Input Voltage-Nom:

    20 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Output Current-Max:

    0.1 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    PUSH-PULL

  • Switching Frequency-Max:

    300 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

SG3524P013TR Frequently Asked Questions (FAQs)

  • The maximum output current of the SG3524P013TR is 1.5A per channel, making it suitable for high-power applications.
  • To ensure stable operation in high-temperature environments, it is recommended to use a heat sink and ensure good thermal conductivity between the device and the heat sink. Additionally, the device should be operated within its recommended temperature range of -40°C to 125°C.
  • The soft-start pin (SS) on the SG3524P013TR is used to control the output voltage rise time during startup. By connecting a capacitor to the SS pin, the output voltage rise time can be slowed down, reducing inrush currents and electromagnetic interference (EMI).
  • To synchronize the SG3524P013TR with an external clock signal, connect the clock signal to the RT pin (pin 5). The device will then synchronize its internal oscillator with the external clock signal, allowing for synchronization with other devices or systems.
  • To ensure optimal performance and minimize electromagnetic interference (EMI), it is recommended to follow good PCB design practices, such as using a multi-layer PCB, separating analog and digital grounds, and using decoupling capacitors. Additionally, the device should be placed close to the power supply and output components to minimize parasitic inductance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SG3524P013TR Overview

Use the download button to access the SG3524P013TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SG352, or try a keyword search, such as Switching Regulator or Controllers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
