The maximum voltage rating for the SG3525AN is 40V. However, it's recommended to operate within 35V to ensure reliable operation.
The values of RT and CT depend on the desired oscillator frequency. A good starting point is to use the values recommended in the datasheet (RT = 2.2kΩ, CT = 3.3nF). Then, adjust these values based on the specific application requirements.
The soft-start pin (SS) is used to gradually increase the output voltage during startup, reducing inrush currents and electromagnetic interference (EMI). Connect a capacitor (typically 10nF to 100nF) from the SS pin to ground, and a resistor (typically 1kΩ to 10kΩ) from the SS pin to the output voltage.
The SG3525AN operates within the recommended frequency range of 100Hz to 400Hz. Ensure that the oscillator frequency is set within this range by selecting the correct values for RT and CT. You can also use the frequency calculation formula provided in the datasheet to determine the oscillator frequency.
Key considerations for layout and PCB design include: keeping the power supply and output stages separate, using a solid ground plane, minimizing trace lengths and loops, and placing decoupling capacitors close to the IC. Follow good PCB design practices to minimize electromagnetic interference (EMI) and ensure reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SG3525AN Overview

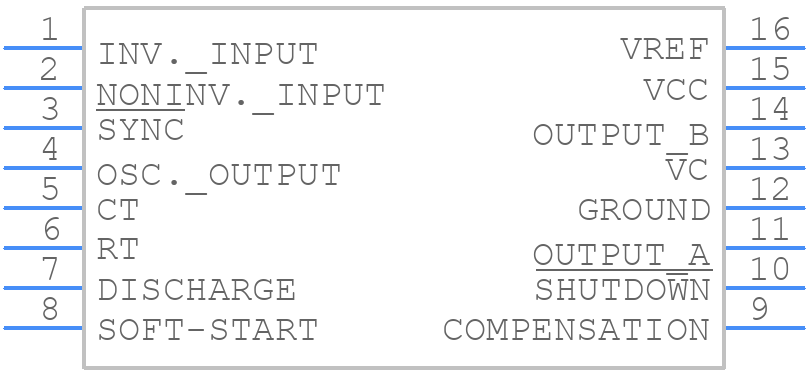

Use the download button to access the SG3525AN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SG352,
or try a keyword search, such as Switching Regulator or Controllers
