SG3526N - Motorola

Description: PULSE WIDTH MODULATION CONTROL CIRCUIT

Download SG3526N Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

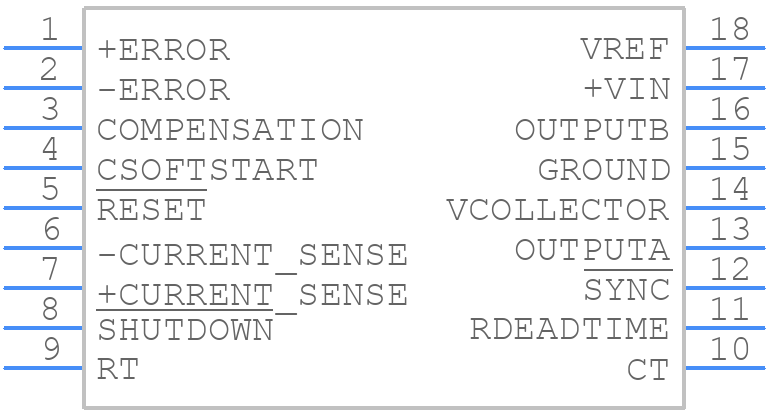

SG3526N - Motorola - PCB symbol
click to zoom
PCB Footprints

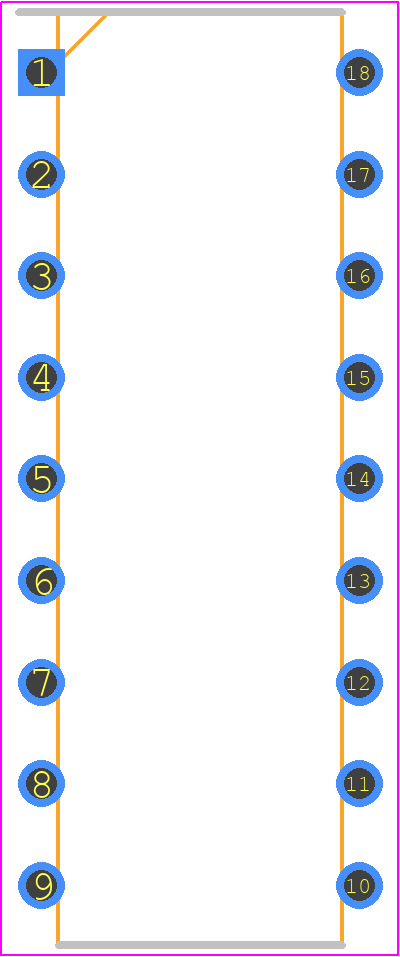

SG3526N - Motorola PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N 18-Pin Plastic Dual Inline
click to zoom
3D Models
SG3526N - Motorola - 3D model - Dual-In-Line Packages - N 18-Pin Plastic Dual Inline
click to zoom

SG3526N Details

  • Manufacturer Part Number:

    SG3526N

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    PLASTIC, DIP-18

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Motorola Semiconductor Products

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    35 V

  • Input Voltage-Min:

    8 V

  • JESD-30 Code:

    R-PDIP-T18

  • JESD-609 Code:

    e0

  • Length:

    22.73 mm

  • Number of Functions:

    1

  • Number of Terminals:

    18

  • Output Current-Max:

    0.2 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP18,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.57 mm

  • Supply Current-Max (Isup):

    30 mA

  • Surface Mount:

    NO

  • Switcher Configuration:

    PUSH-PULL

  • Switching Frequency-Max:

    400 kHz

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

SG3526N Frequently Asked Questions (FAQs)

  • The maximum switching frequency of the SG3526N is typically around 400 kHz, but it can be as high as 500 kHz with proper design and layout considerations.
  • To ensure stable operation, make sure to follow proper design guidelines, including selecting the correct output filter components, using a stable voltage reference, and providing adequate decoupling and bypassing of the power supply rails.
  • The soft-start pin (SS) is used to gradually ramp up the output voltage of the power supply during startup, reducing inrush current and preventing voltage overshoots.
  • The dead time can be adjusted by connecting a resistor and capacitor in series between the RT pin and ground, and adjusting the values to achieve the desired dead time.
  • The maximum output current capability of the SG3526N is dependent on the specific application and design, but it can typically handle output currents up to 1.5 A per channel.
