SGGP.12.4.A.02 - Taoglas

Description: Antennas SGGP.12.4.A.02 GPS/GLONASS/Galileo 12*12*4mm SMD Mount Patch

Download SGGP.12.4.A.02 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

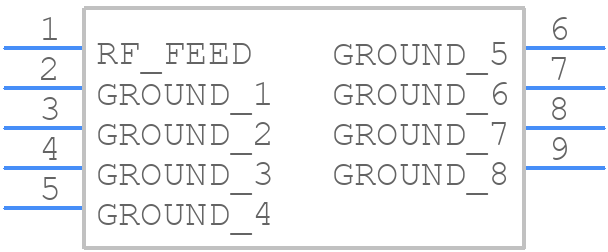

SGGP.12.4.A.02 - Taoglas - PCB symbol
click to zoom
PCB Footprints

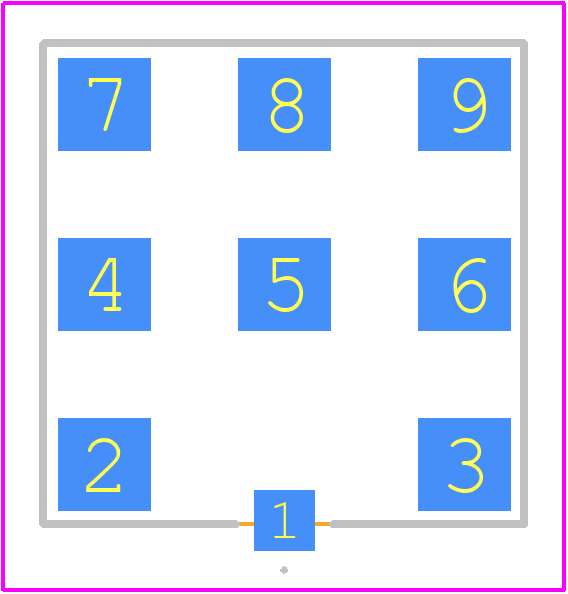

SGGP.12.4.A.02 - Taoglas PCB footprint - Other - Other - SGGP.12.4.A.02-1
click to zoom
3D Models
SGGP.12.4.A.02 - Taoglas - 3D model - Other - SGGP.12.4.A.02-1
click to zoom

SGGP.12.4.A.02 Details

  • Manufacturer Part Number:

    SGGP.12.4.A.02

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Factory Lead Time:

    13 Weeks, 5 Days

  • Manufacturer:

    Taoglas Antenna Solutions

  • Additional Feature:

    TS 16949

  • Application:

    GPS/GALILEO/GLONASS

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Operating Frequency-Max:

    1607 MHz

  • Operating Frequency-Min:

    1574.4 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    GPS ANTENNA

SGGP.12.4.A.02 Frequently Asked Questions (FAQs)

  • The SGGP.12.4.A.02 is a linearly polarized antenna, and for optimal performance, it is recommended to install it with the antenna elements vertical to the ground.
  • The SGGP.12.4.A.02 is designed to operate in temperatures ranging from -40°C to +85°C, making it suitable for outdoor use in various environmental conditions.
  • The SGGP.12.4.A.02 has a maximum power rating of 20W, making it suitable for most IoT and wireless communication applications.
  • Yes, the SGGP.12.4.A.02 is designed for outdoor use and is IP67 rated, making it resistant to dust and water ingress. It can withstand environmental factors such as rain, snow, and extreme temperatures.
  • The typical lead time for delivery of the SGGP.12.4.A.02 is 4-6 weeks, depending on the quantity and shipping location.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SGGP.12.4.A.02 Overview

Use the download button to access the SGGP.12.4.A.02 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SGGP., or try a keyword search, such as RF/Microwave Antennas
