SGIHLP24DCB1R0M81S - Vishay

Description: Ind Chip Power 1uH 20% 2404 2-Pin SMD Bulk - Bulk

Download SGIHLP24DCB1R0M81S Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SGIHLP24DCB1R0M81S - Vishay - PCB symbol
click to zoom
PCB Footprints

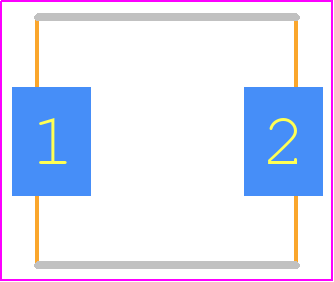

SGIHLP24DCB1R0M81S - Vishay PCB footprint - Inductors Precision Moulded - Inductors Precision Moulded - 6.22mm x 6.22mm x 4.32mm
click to zoom
3D Models
SGIHLP24DCB1R0M81S - Vishay - 3D model - Inductors Precision Moulded - 6.22mm x 6.22mm x 4.32mm
click to zoom

SGIHLP24DCB1R0M81S Details

  • Manufacturer Part Number:

    SGIHLP24DCB1R0M81S

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    7.7

  • Case/Size Code:

    2424

  • Construction:

    Rectangular

  • DC Resistance:

    0.01229 Ω

  • Inductance-Nom (L):

    1 µH

  • Inductor Application:

    HIGH CURRENT INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    180 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    4.32 mm

  • Package Length:

    6.22 mm

  • Package Style:

    SMT

  • Package Width:

    6.22 mm

  • Packing Method:

    Bulk

  • Rated Current-Max:

    10.8 A

  • Reference Standard:

    MIL-STD-981

  • Self Resonance Frequency:

    60.7 MHz

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    YES

  • Surface Mount:

    YES

  • Terminal Placement:

    DUAL ENDED

  • Terminal Shape:

    WRAPAROUND

  • Test Frequency:

    0.1 MHz

  • Tolerance:

    20%

SGIHLP24DCB1R0M81S Frequently Asked Questions (FAQs)

  • The thermal resistance (Rth) of the SGIHLP24DCB1R0M81S is 1.5°C/W (junction-to-case) and 10°C/W (junction-to-ambient) when mounted on a 1 inch² (6.45 cm²) copper pad.
  • Yes, the SGIHLP24DCB1R0M81S is suitable for high-frequency switching applications due to its low switching losses and high-frequency capability. However, ensure proper thermal management and consider the device's maximum operating frequency (fMAX) of 100 kHz.
  • To ensure reliability, follow the recommended operating temperature range (-40°C to 150°C), use a suitable thermal interface material, and maintain a safe operating junction temperature (Tj) below the maximum rating of 150°C.
  • Vishay provides a recommended PCB layout and land pattern in the datasheet, which includes a thermal pad and optimized pin spacing for efficient heat dissipation and signal integrity.
  • The SGIHLP24DCB1R0M81S has a maximum repetitive peak voltage (VDRM) of 2400 V and a maximum working peak reverse voltage (VWM) of 1800 V. Ensure the device is operated within these voltage limits to prevent damage or failure.
