SG Micro Corp recommends a 4-layer PCB with a dedicated ground plane and thermal vias to dissipate heat. A minimum of 1 oz copper thickness is recommended for the top and bottom layers. Additionally, a thermal pad with a minimum size of 2x2 mm is recommended for heat dissipation.
The SGM2019-2.5YN5G/TR requires a stable voltage supply of 2.5V ± 10% with a minimum of 100 μF decoupling capacitance. Ensure that the input voltage is filtered and regulated to prevent noise and ripple. A soft-start circuit can also be implemented to prevent inrush currents during power-up.
Handle the device with anti-static wrist straps, mats, and packaging to prevent ESD damage. Ensure that the device is stored in a dry, clean environment with a relative humidity of 60% or less. Use a grounded soldering iron and follow proper soldering techniques to prevent ESD damage during assembly.
Use a logic analyzer or oscilloscope to monitor the device's input and output signals. Check for proper power supply voltage, decoupling, and signal integrity. Verify that the device is properly configured and biased according to the datasheet. Consult the application notes and technical support resources provided by SG Micro Corp for additional guidance.
The SGM2019-2.5YN5G/TR is designed to meet industry-standard reliability and lifespan expectations. The device is rated for a minimum of 10,000 hours of operation at 25°C ambient temperature, with a failure rate of less than 1 FIT (failures per billion device-hours). However, actual lifespan may vary depending on operating conditions, PCB design, and environmental factors.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SGM2019-2.5YN5G/TR Overview

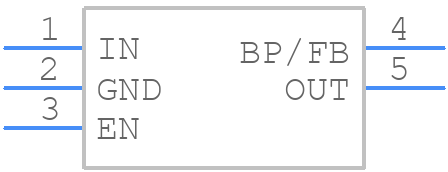

Use the download button to access the SGM2019-2.5YN5G/TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SGM20,
or try a keyword search, such as Linear Regulator ICs
