SGM3775QPTS20G/TR - SGMICRO

Description: 4.5V to 65V Automotive High Accuracy LED Controller with Spread Spectrum Frequency Modulation TSSOP-20A (Exposed Pad)

Download SGM3775QPTS20G/TR Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this SGM3775QPTS20G/TR model

Email notifications will be applied after download.

Send part feedback

Symbol

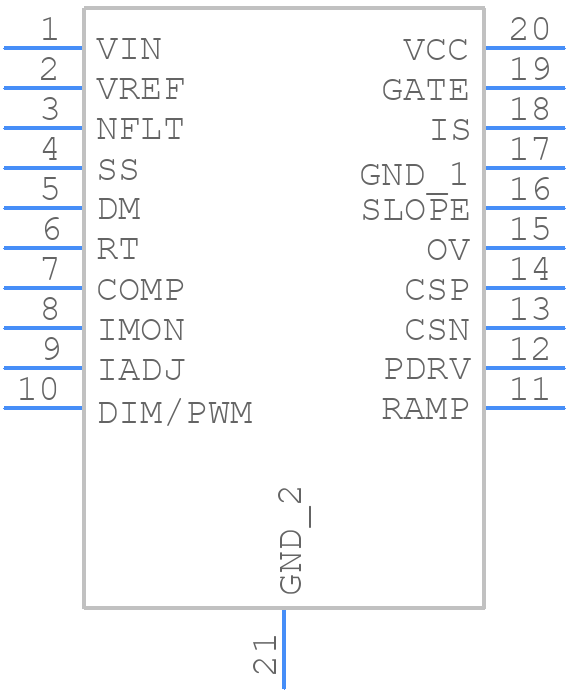

SGM3775QPTS20G/TR - SGMICRO - PCB symbol

PCB Footprints

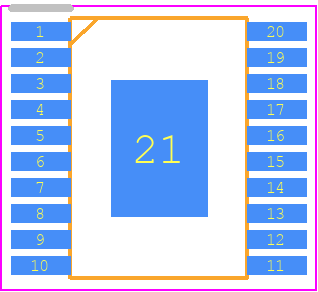

SGM3775QPTS20G/TR - SGMICRO PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP-20A (Exposed Pad)

3D Models

SGM3775QPTS20G/TR - SGMICRO - 3D model - Small Outline Packages - TSSOP-20A (Exposed Pad)

Datasheet Download Datasheet
Stock & Prices Price & Stock for SGM3775QPTS20G/TR
Part Number SGM3775QPTS20G/TR
Manufacturer SGMICRO
Pin Count 21
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - TSSOP-20A (Exposed Pad)
Released Date Dec 31, 2025
Last Modified Date Dec 31, 2025 3:20 AM UTC
Pinout / Pin List Click Here (Member Only)

SGM3775QPTS20G/TR Details

Manufacturer Part Number:
SGM3775QPTS20G/TR
Manufacturer:
SG Micro Corp

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

SGM3775QPTS20G/TR Overview

Use the download button to access the SGM3775QPTS20G/TR schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like SGM37, or try a keyword search, such as Display Drivers
