SGM3837AYG/TR - SGMICRO

Description: 2.5V to 5.0V Input Supply Voltage Range Synchronous Boost Converter (ELVDD) 4.6V to 5.0V Output Voltage with 100mV Steps 4.6V Default Output Voltage 0.7% Accuracy at 4.6V Synchronous Inverting Buck-Boost Converter (ELVSS) -6.6V to -0.5V Output Voltage with 100mV Step -1.4V Default Output Voltage ±40mV Variation at -1.4V ±30mV Variation at -3V

Download SGM3837AYG/TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

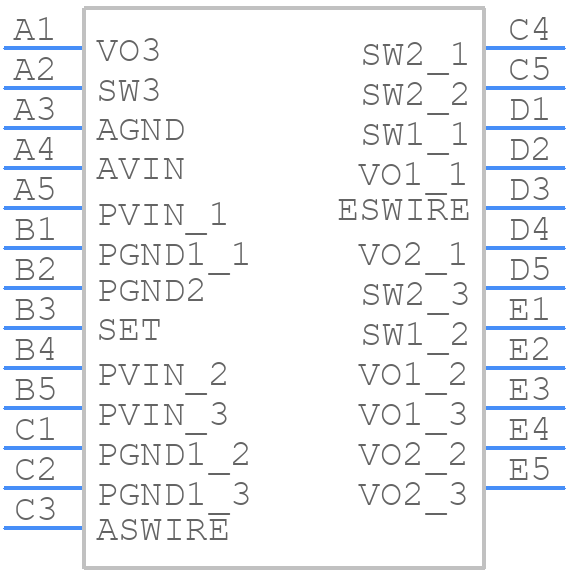

SGM3837AYG/TR - SGMICRO - PCB symbol
click to zoom
PCB Footprints
SGM3837AYG/TR - SGMICRO PCB footprint - BGA - BGA - WLCSP-2×2-25B-A....
click to zoom
3D Models
SGM3837AYG/TR - SGMICRO - 3D model - BGA - WLCSP-2×2-25B-A....
click to zoom

SGM3837AYG/TR Details

  • Manufacturer Part Number:

    SGM3837AYG/TR

  • Manufacturer:

    SG Micro Corp

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SGM3837AYG/TR Overview

Use the download button to access the SGM3837AYG/TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SGM38, or try a keyword search, such as Switching Regulator or Controllers
