Technical Content
Part Image

SGM4551YN8G/TR - SGMICRO

Description: Bidirectional I2 C Translator Support I 2 C and SMBus Compatible Propagation Delay: Less than 5.5ns Acceptable Voltage Reference 1.2V VREF1 and 1.8V, 2.5V, 3.3V, or 5V VREF2 1.8V VREF1 and 2.5V, 3.3V, or 5V VREF2 2.5V VREF1 and 3.3V or 5V VREF2 3.3V VREF1 and 5V VREF2 Low On-Resistance: 3.5Ω (TYP) GPIO Ports with I2 C Open-Drain Logic (SCL1, SDA1, SCL2 and SDA2) Mixed-Mode Signal be Supported by I/O Ports with 5V Tolerant

Download SGM4551YN8G/TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

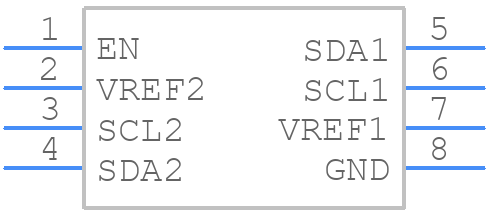

SGM4551YN8G/TR - SGMICRO - PCB symbol
click to zoom
PCB Footprints
SGM4551YN8G/TR - SGMICRO PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - SOT-23-8...
click to zoom
3D Models
SGM4551YN8G/TR - SGMICRO - 3D model - SOT23 (8-Pin) - SOT-23-8...
click to zoom

SGM4551YN8G/TR Details

  • Manufacturer Part Number:

    SGM4551YN8G/TR

  • Manufacturer:

    SG Micro Corp

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SGM4551YN8G/TR Overview

Use the download button to access the SGM4551YN8G/TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SGM45, or try a keyword search, such as Level Translators
