SGM6614XTSL11G/TR - SGMICRO

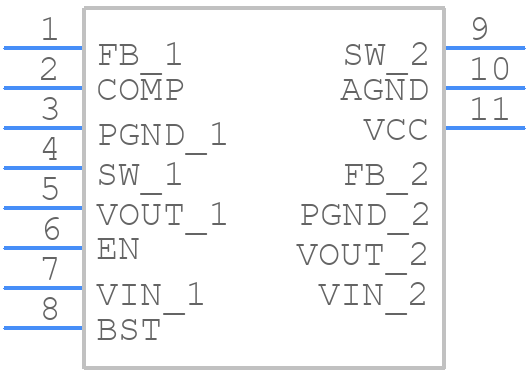

SGM6614XTSL11G/TR Details

• Manufacturer Part Number:

  SGM6614XTSL11G/TR

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  TQFN-11

• Manufacturer Package Code:

  TQFN-11

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  SG Micro Corp

• YTEOL:

  8

• Additional Feature:

  PFM CONTROL TECHNIQUE ALSO AVAILABLE

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Control Mode:

  CURRENT-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  18 V

• Input Voltage-Min:

  2.17 V

• JESD-30 Code:

  R-XQCC-N11

• Length:

  3 mm

• Number of Functions:

  1

• Number of Terminals:

  11

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  15 A

• Output Voltage-Max:

  18 V

• Output Voltage-Min:

  4.5 V

• Package Body Material:

  UNSPECIFIED

• Package Code:

  VQCCN

• Package Equivalence Code:

  LCC11,08X0.12(UNSPEC)

• Package Shape:

  RECTANGULAR

• Package Style:

  CHIP CARRIER, VERY THIN PROFILE

• Seated Height-Max:

  0.8 mm

• Surface Mount:

  YES

• Switcher Configuration:

  BOOST

• Switching Frequency-Max:

  500 kHz

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Width:

  2.5 mm
