A multi-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1mm clearance around the device for airflow and heat dissipation. A thermal pad on the bottom of the package can be connected to a thermal plane or heat sink for improved heat dissipation.
Follow the recommended biasing and configuration guidelines in the datasheet. Ensure the input and output capacitors are properly selected and placed close to the device. Verify the device is operated within the recommended voltage and current ranges.
The device requires a stable clock signal with a minimum amplitude of 0.5V and a maximum jitter of 100ps. Data inputs should be synchronized with the clock signal and meet the setup and hold time requirements specified in the datasheet.
Use a logic analyzer or oscilloscope to monitor the device's inputs and outputs. Verify the power supply and clock signals are stable and within specifications. Check for proper PCB layout and thermal management. Consult the datasheet and application notes for troubleshooting guidelines and FAQs.
SG Micro Corp follows a rigorous quality control process, including 100% visual inspection, automated testing, and environmental stress screening. The device is built with high-reliability materials and manufacturing processes to ensure a minimum of 10 years of operation under normal conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SGM7227YMS10G/TR Overview

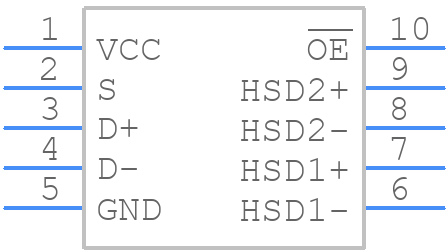

Use the download button to access the SGM7227YMS10G/TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SGM72,
or try a keyword search, such as Multiplexers or Switches
