SGR282ZK 24VDC - ELESTA

Description: RELAY, SAFETY, DPDT, 250VAC, 8A; Coil Voltage:24VDC; Contact Configuration:DPDT; Product Range:SGR 282 ZK Series; Relay Mounting:Through Hole; Contact Current:8A; Relay Terminals:Solder; Contact Voltage AC Nom:250V; IP Rating:- RoHS Compliant: Yes

Download SGR282ZK 24VDC Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this SGR282ZK 24VDC model

Email notifications will be applied after download.

Send part feedback

Symbol

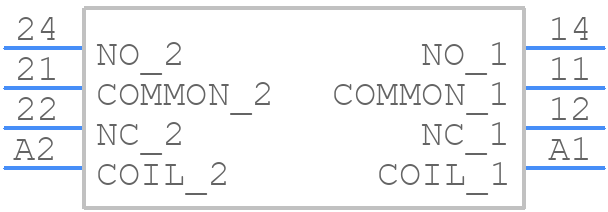

SGR282ZK 24VDC - ELESTA - PCB symbol

PCB Footprints

SGR282ZK 24VDC - ELESTA PCB footprint - Other - Other - SGR282ZK 24VDC-1

3D Models

SGR282ZK 24VDC - ELESTA - 3D model - Other - SGR282ZK 24VDC-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for SGR282ZK 24VDC
Part Number SGR282ZK 24VDC
Manufacturer ELESTA
Pin Count 8
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - SGR282ZK 24VDC-1
Released Date Apr 3, 2020
Last Modified Date Oct 17, 2024 10:39 AM UTC
Pinout / Pin List Click Here (Member Only)

SGR282ZK 24VDC Details

Manufacturer Part Number:
SGR282ZK 24VDC
Manufacturer:
ELESTA GmbH

Trust Checks

Expert Contribution

System Verified

Community Approved

SGR282ZK 24VDC Overview

Use the download button to access the SGR282ZK 24VDC schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like SGR28, or try a keyword search, such as Other Relays
