The recommended torque value for the SGX-4OX connector is 10-12 in-lbs (1.1-1.4 Nm) for the coupling nut and 5-7 in-lbs (0.6-0.8 Nm) for the backshell.
Yes, the SGX-4OX connector is designed to withstand high-vibration environments and meets the requirements of MIL-DTL-38999, which includes vibration testing.
Yes, the SGX-4OX connector is designed to be compatible with other MIL-DTL-38999 connectors from different manufacturers, ensuring interoperability and flexibility in system design.
The operating temperature range of the SGX-4OX connector is -65°C to 200°C, making it suitable for use in a wide range of applications, from extreme cold to high-temperature environments.
Yes, the SGX-4OX connector is designed to withstand harsh environments, including high humidity and exposure to chemicals, and meets the requirements of MIL-DTL-38999 for environmental testing.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SGX-4OX Overview

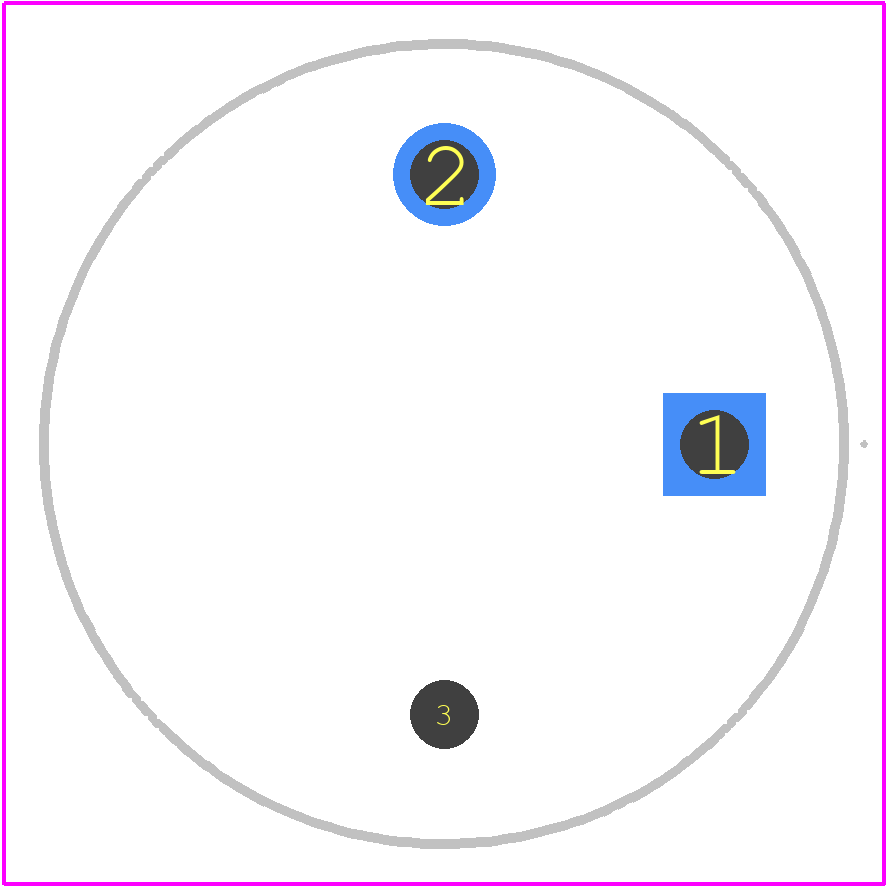

Use the download button to access the SGX-4OX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SGX-4,
or try a keyword search, such as Other Sensors/Transducers
About Amphenol
Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems.
The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
