SH6918F500BPEP footprint, schematic symbol and 3D model by Ohmite

Symbol

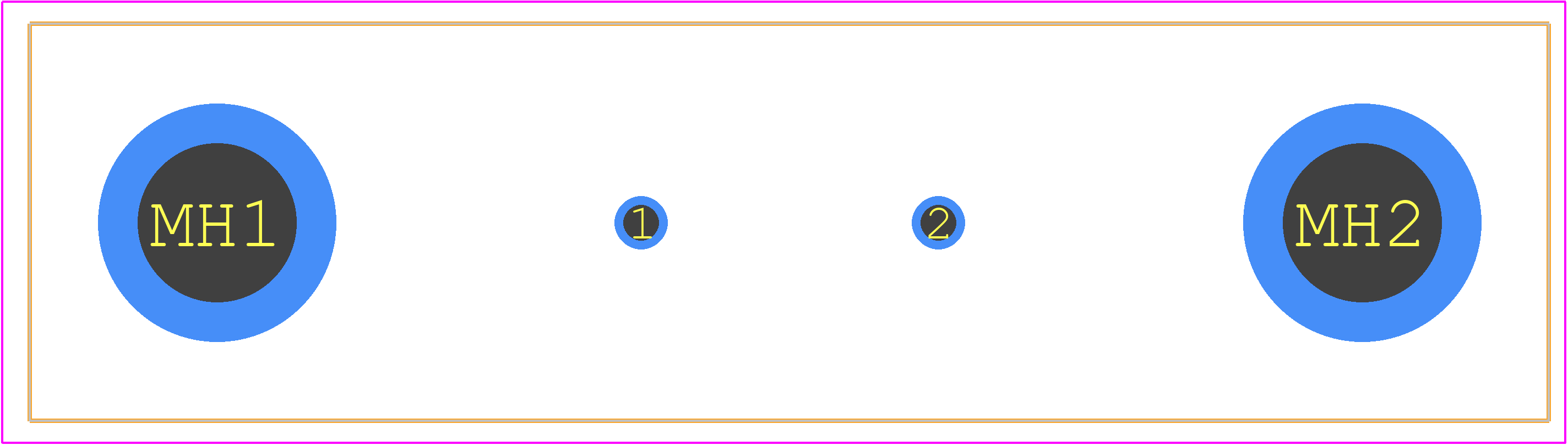

PCB Footprints

3D Models

SH6918F500BPEP Details

The thermal resistance of the SH6918F500BPEP is typically around 1.5°C/W, but this can vary depending on the specific application and mounting method. It's recommended to consult with Ohmite's application engineers for more detailed information.
Yes, the SH6918F500BPEP is RoHS and REACH compliant, making it suitable for use in a wide range of applications, including those in the European Union.
The recommended torque for mounting the SH6918F500BPEP is typically around 10-12 in-lbs (1.1-1.4 Nm), but this can vary depending on the specific application and mounting method. It's recommended to consult with Ohmite's application engineers for more detailed information.
Yes, the SH6918F500BPEP is designed to withstand high-vibration environments, making it suitable for use in applications such as aerospace, automotive, and industrial control systems.
The typical lead time for delivery of the SH6918F500BPEP can vary depending on the quantity and availability, but it's typically around 6-8 weeks. It's recommended to consult with Ohmite's sales team or authorized distributors for more detailed information.

Expert Contribution

System Verified

Community Approved

Use the download button to access the SH6918F500BPEP schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like SH691, or try a keyword search, such as Fixed Resistors
